Name: Midmark 104 Exam Table
Brand: Midmark
Price: 895.0 USD
Availability: InStock

Midmark 104 Exam Table

Description

Midmark 104 Exam Table

The Midmark 104 exam table model is one of the most popular
exam beds ever made. This exam table model includes stirrups, adjustable head section,
pull out step drawer, storage drawers and a pull out top section to lay a patient flat.
Learn more about the Ritter 104 exam bed model below. We sell these refurbished with new upholstery and can ship anywhere in the United States. We have locations in Virginia, Ohio, Florida and Southern California. Ritter and Midmark are the same company so sometimes the 104 model exam table is branded as Midmark and sometimes as Ritter.

Midmark 104 Exam Table Price: $895 Recertified with New Upholstery

One of the most popular exam tables put in hospitals and doctor offices
is the Midmark – Ritter 104 exam table. This exam table – bed provides a
step stool in from bottom drawer and (2) more front drawers
along with 3 side drawers for supplies and a power cord to
provide auxillery power for exam lights and other power based
medical equipment. We sell the Midmark 104 exam table refurbished
with good upholstery and a host of color options.

Contact us for current colors and styles in stock at:
858-263-4894 California
540-327-7376 Virginia
hospitaldirectmedical@gmail.com

Midmark 104 exam table sold used – refurbished with new upholstery.

*** We can also reupholster 104 tables to a color of your choice ***
Contact us for more information.

Midmark 104 Exam Table Price = $895.00

Midmark 104 table for sale

Midmark 104 Exam Table Features:

Patient positioning is easy with the Ritter 104 Examination Table.
Spring-assisted backrest.
Hide-away stirrups pull out and lock in numerous positions.
Can be customized with numerous accessories.
Electrical receptacle.
Non-skid locking footstep.
Five Large drawers for storage.
Numerous accessories like pelvic tilt, speculum warmer, stainless steel irrigation pan or knee crutches to customize the l04.

Midmark 104 Exam Table Specifications:

Dimensions (Top): 27” W x 54” L (68.8 x 137cm)
Length with foot extension: 72” (182.9 cm)
Height: 32.5” (82.6cm)
Paper roll holder (hidden): 21” (53.3cm)
Soft-touch Top
Treatment pan
Option: Drawer heater (60 watt)
Electrical: 115 VAC, 60 Hz, 6 AMPS (115 VAC, 60 Hz, 6.5 AMPS, with heater)
Also available in 220 VAC, 50/60 Hz.

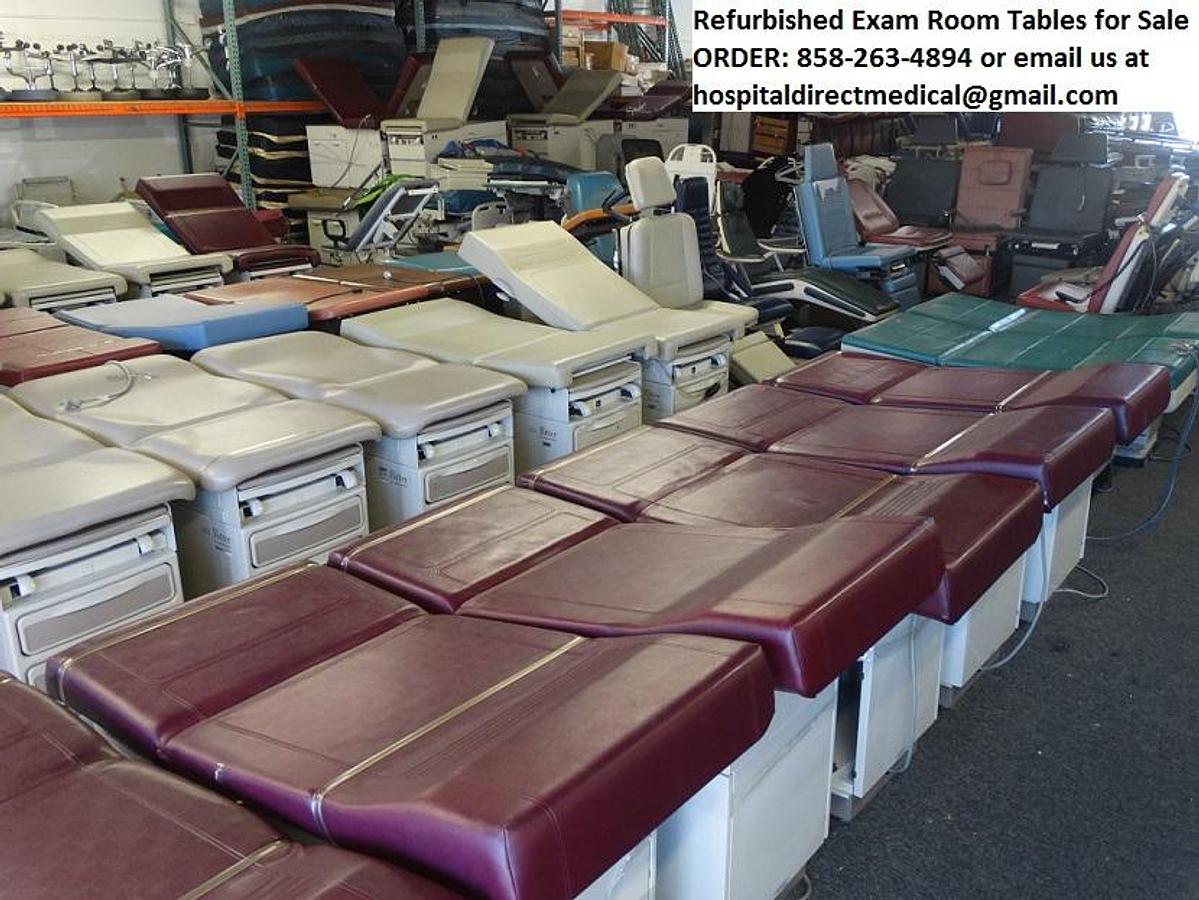

Exam Tables for Sale including Midmark 100, 104, 204, 304 and 404 exam table models

Midmark 104 exam table sold used – refurbished with new upholstery.

Midmark 104 Tables Specifications

The 104 Medical Examination Table is primarily used in examination rooms for general examinations and minor procedures. The table top is adjustable from a full horizontal table position to a chair position. Also, when supported with an optional pelvic lift bar, the lithotomy position can be achieved. There are five storage drawers which accommodate supplies used during examinations. Features The Model 104 Examination Table has . . . • a manually adjustable back section which is controlled by a spring assisted release handle, located on both the left and right sides of the table. The back section is adjustable from a full horizontal table position to a chair position. • an optional pelvic lift bar which allows the seat section to be positioned in the Lithotomy position. • an optional drawer warmer which warms the foot end, top drawer. • an extendable footrest shelf which includes a positionable upholstered pad and a removable treatment pan. • right and left stirrups which can be extended to an infinite number of positions as well as laterally in four positions. • five storage drawers on steel ball bearing glides; two on the foot end of the table and three on either the right or left side of the table (selected at time of purchase). • a self-locking steel step with a non-skid surface. The steps extends from the foot end of the table to assist patient entry and exit. • a duplex, hospital grade 115 VAC receptacle, located on the foot end, left side of the table. • a paper roll holder which is hidden in the head end of the upholstered top and tear strips, located at the foot end and head end of the upholstered top, to secure examination paper during a patient examination or procedure.

DESCRIPTION OF COMPONENTS 1. Back Section (adjustable) 7. Storage Drawers 2. Seat Section 8. Release Handle 3. Foot Rest Shelf (extendable) 9. Duplex Receptacle 4. Footrest Pad (removable) 10. Drawer Warmer (optional) 5. Treatment Irrigation Pan 11. Footstep (stowable) 6. Stirrups 12. Paper Roll Dowel

Stirrups are included and pull out and tuck in if not needed or not being used.
To adjust the lateral position of a stirrup, lift end of stirrup and then rotate stirrup to the right or left into one of the four possible lateral positions. The stirrup will click into each position as it is rotated. When the desired position is attained, lower stirrup to engage the lateral locking mechanism. Check that lateral locking mechanism is engaged by attempting to rotate stirrup assembly without lifting on stirrup end. To return stirrup to storage, grasp end of stirrup and pull stirrup straight out to full extension. Fold stirrup down against bar, rotate stirrup to lateral position 1, and then slide stirrup back into stowed position.

Footrest To position the footrest (1), pull footrest out to the desired position. The upholstered pad (2) on the footrest will extend with the footrest. To remove the upholstered footrest pad (2) from the footrest (1), fully extend the footrest and lift the upholstered pad straight up off the footrest. To replace the upholstered footrest pad (2), align pad glides (3) with slots (4) in footrest (1) and install. Slide footrest into table. MA430700 2 1 3 4 3 MA430800 Operation 11 Irrigation Pan To expose the irrigation pan (1) for use, grasp the footrest (2) and pull until footrest is fully extended. Then, slide upholstered footrest pad (3) back into table. Now, grasp the footrest (2) again and slide the footrest in or out until the irrigation pan is positioned as desired. The irrigation pan (1) can easily be removed for cleaning when the footrest (2) is fully extended.

SPECIFICATIONS

Patient Weight (Maximum) ………………325 lbs (147.4 kgs)

Weight of Table……………………………….250 lbs (113.4 kgs)

Back Section Adjustment………………..0° to 80° D

imensions: Upholstered top……………..27.0 in. wide x 55.0 in. long (68.6 cm x 139.7 cm)

With Footrest Extended……………………..72 in. (182.9 cm)

Seat Height ……………………………………..31.75 in. (80.6 cm) to top of upholstered seat at foot end Step

………………………………………………..10.75 x 17.75 x 10.75 high (27.3 cm x 45.1 cm x 27.3 cm)

Base……………………………………………….17.5 in. x 42.375 in. x 4.125 in. high (44.4 cm x 107.6 cm x 10.5 cm)

Paper Roll ………………………………………Can accept a paper roll up to 21 in. x 3.5 in. (53.3 cm x 8.9 cm).

Midmark 104 exam table for sale

Midmark 104 exam table operator manual brochure

We Ship or Deliver All Over The USA

CALIFORNIA
San Diego California, Orange County California, Riverside California,
Los Angeles California, Palm Springs California, El Centro California and
more. Contact us for shipping or delivery quotes 858-263-4894.

FLORIDA
Jacksonville Florida, Orlando Florida, Tampa Florida, Ocala Florida,
Miami Florida and more.

Ohio
Cincinnati, Akron, Columbus and parts of Indiana and Kentucky

VIRGINIA
Richmond Virginia, Arlington Virginia area and Washington DC

Contact us for shipping quotes and for bulk purchases 858-263-4894
or at 540-327-7376.Normal upholstery and delivery – shipping time is 5-10 working days from the time of delivery.We can also try to accommodate rush delivery needs. Contact us for more information.We ship to New York, New Jersey, Baltimore Maryland, Georgia, Texas and all over the USA.

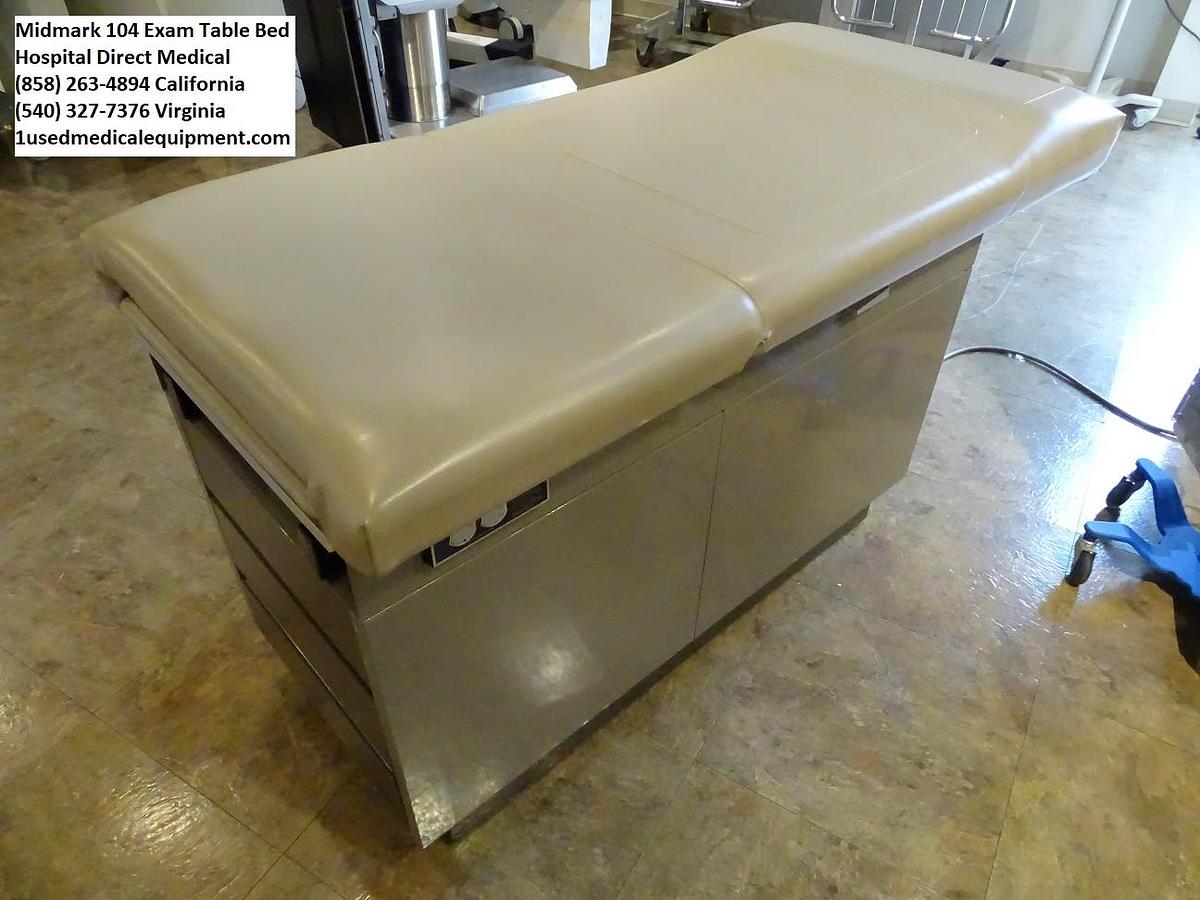

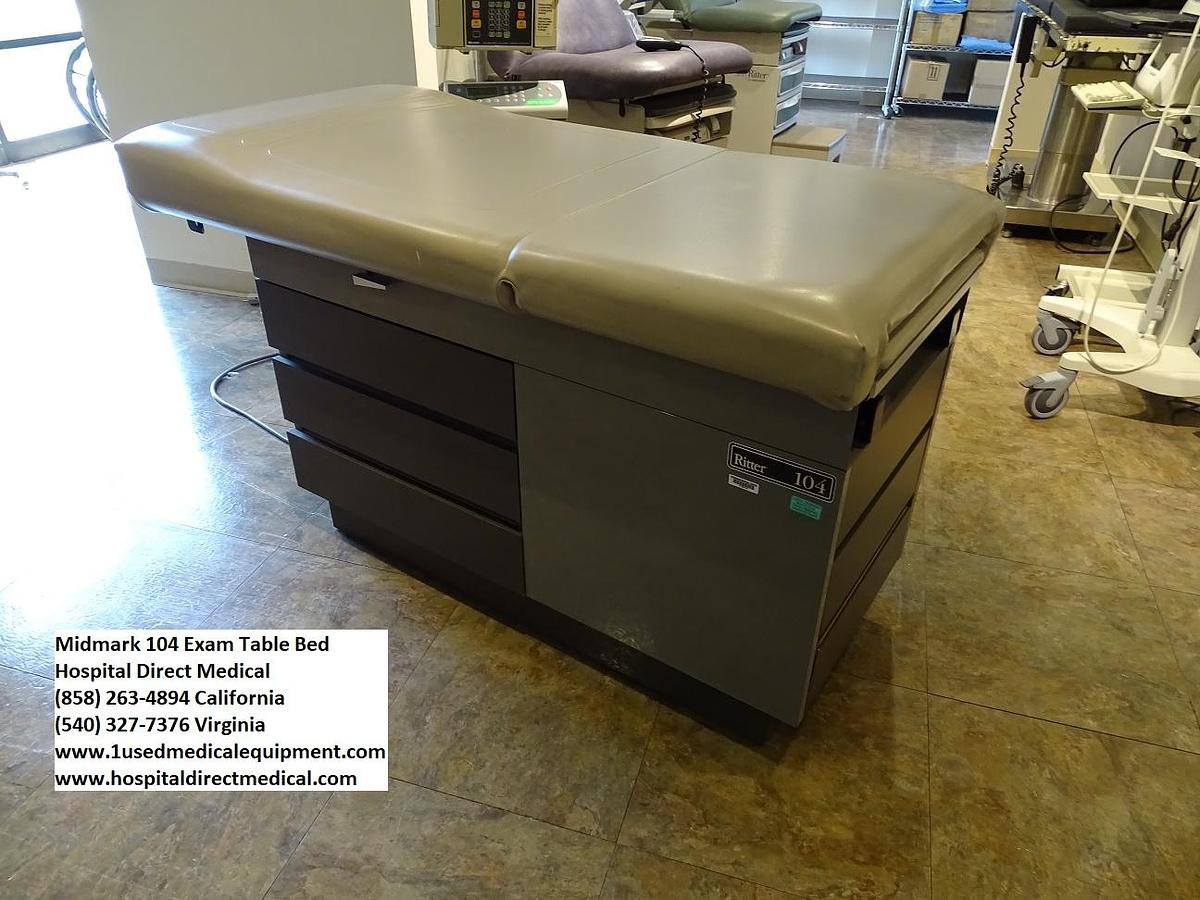

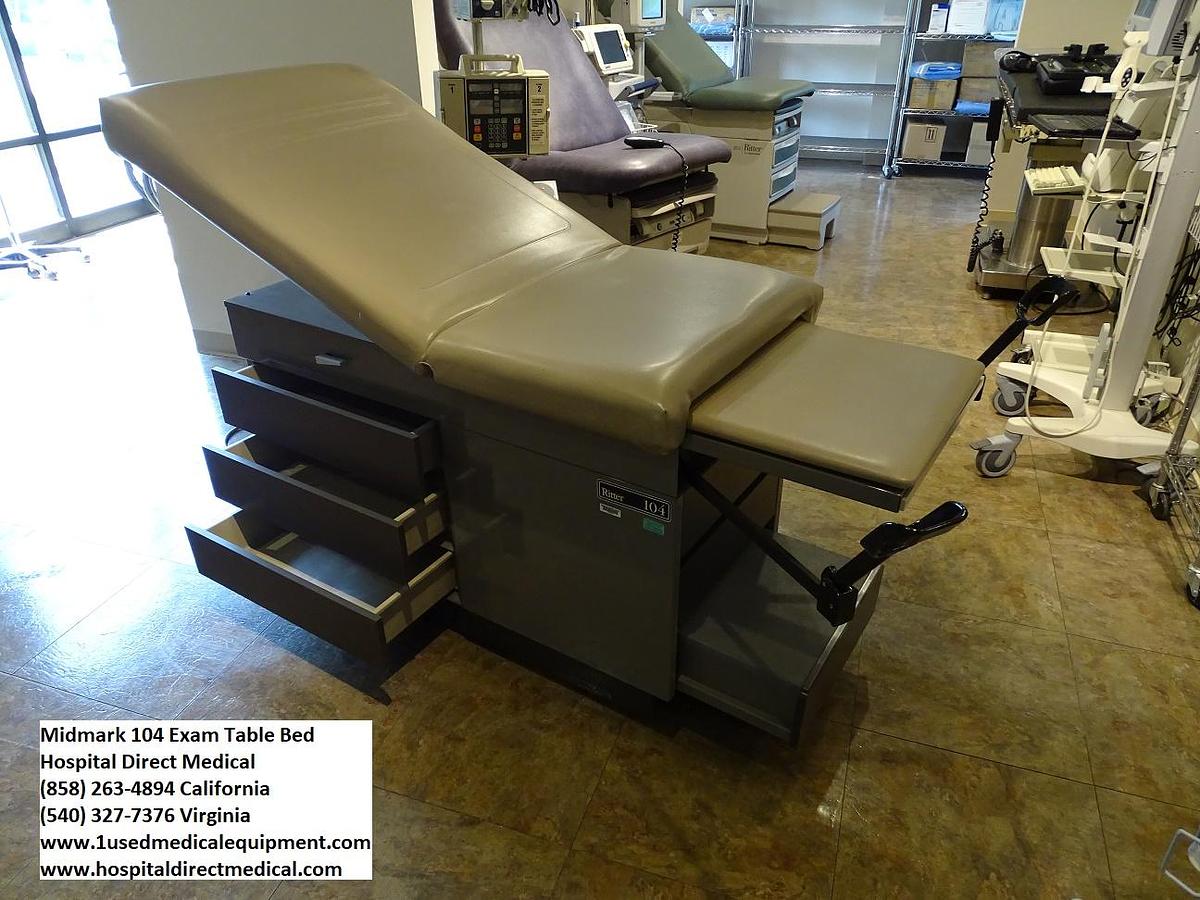

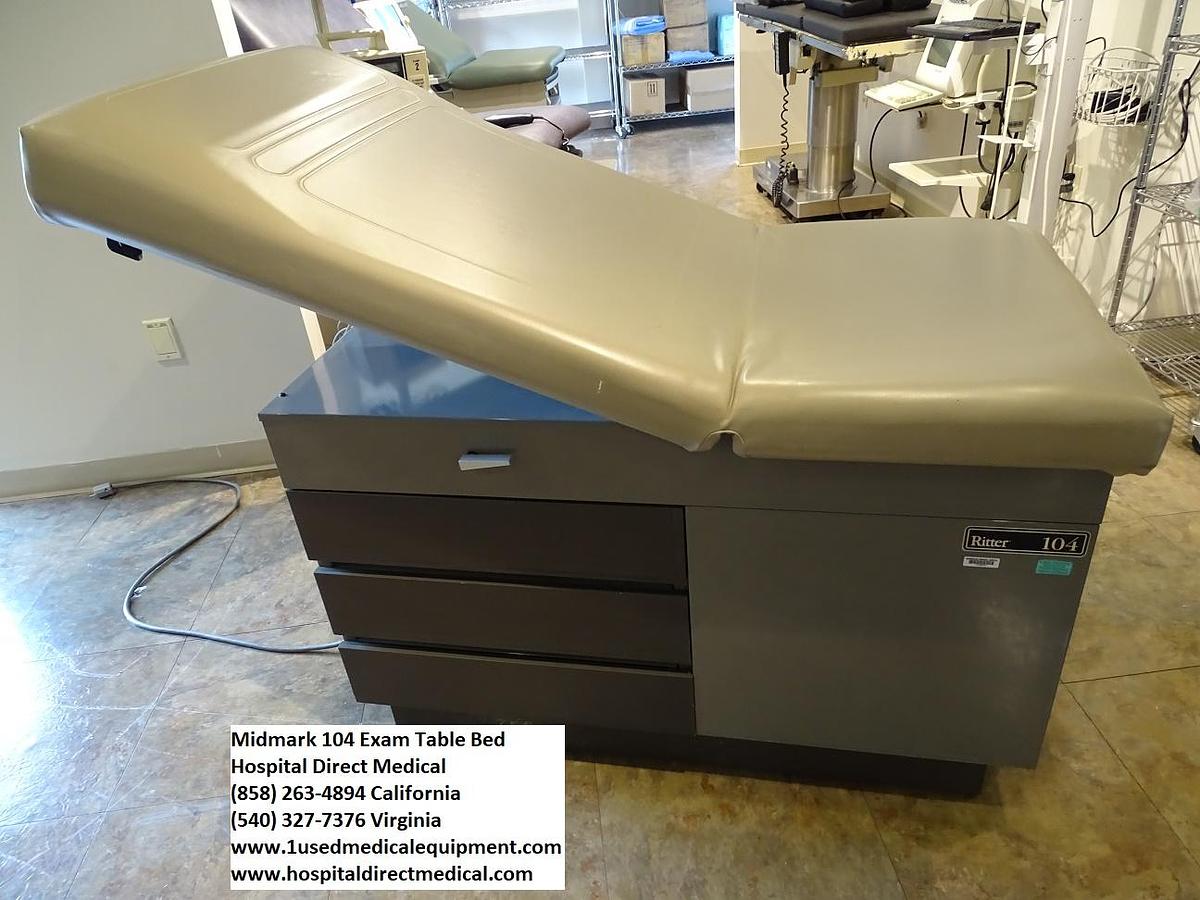

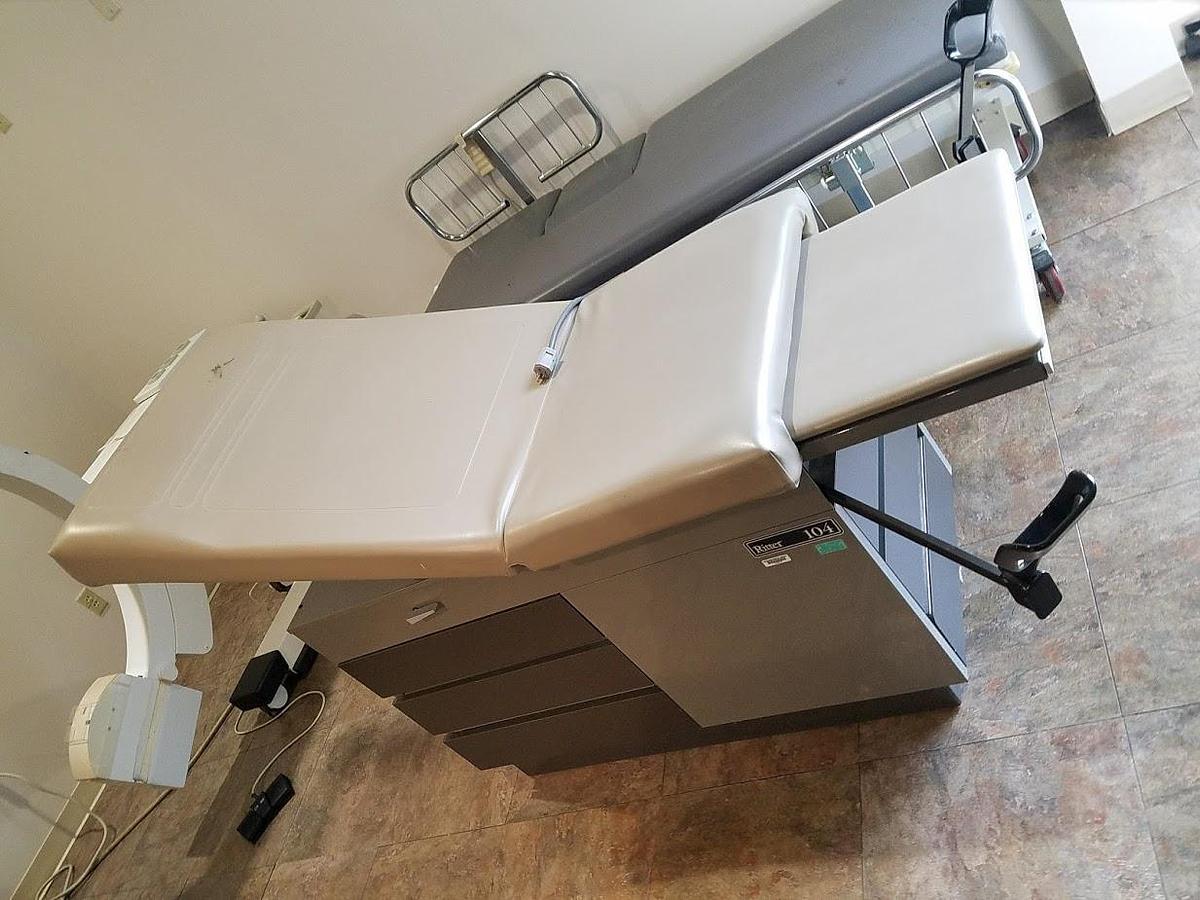

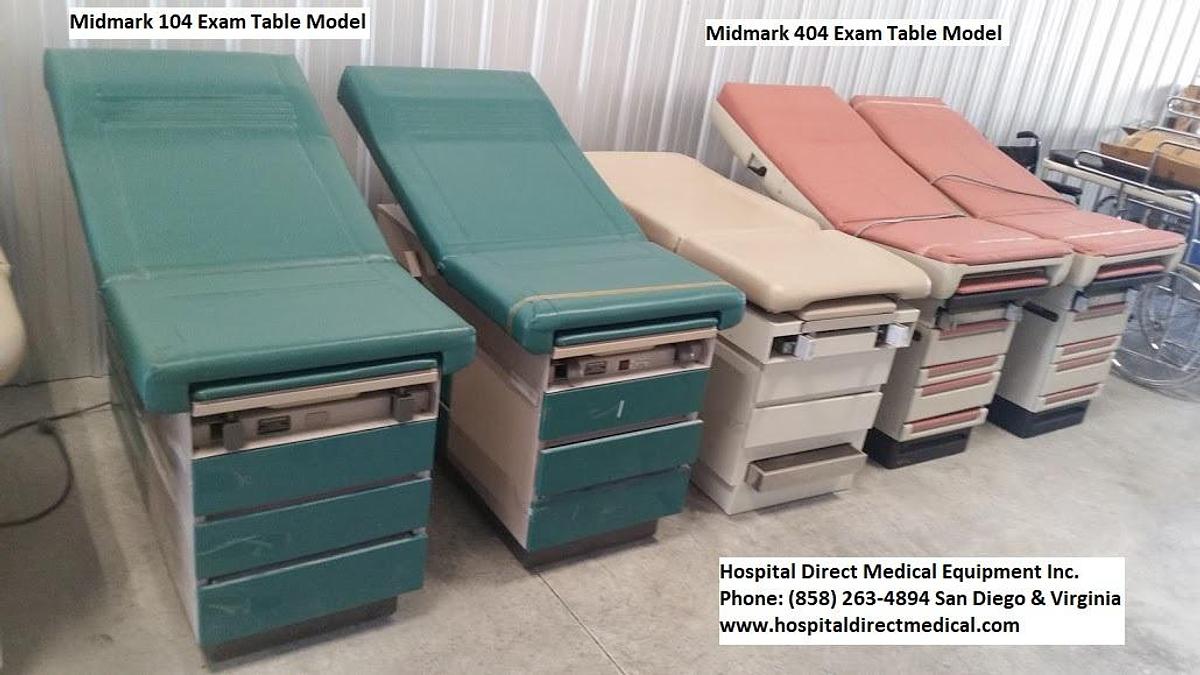

Midmark 104 Exam Table Photos

Midmark 104 exam table for sale 858-263-4894
