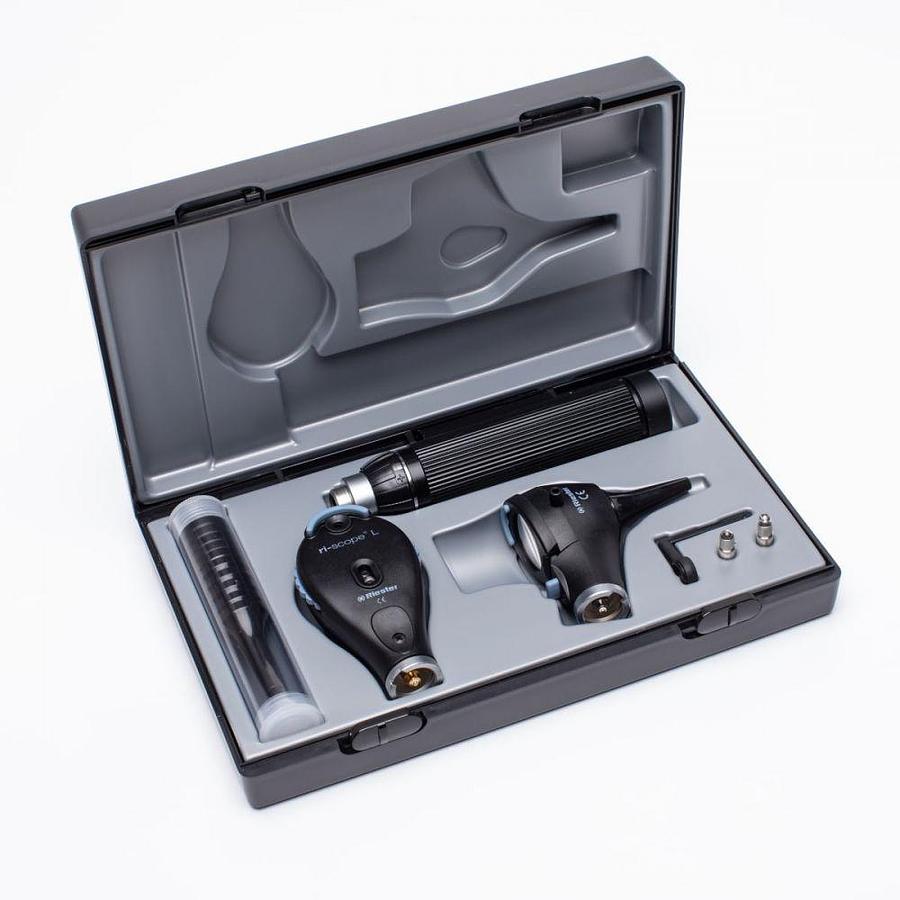

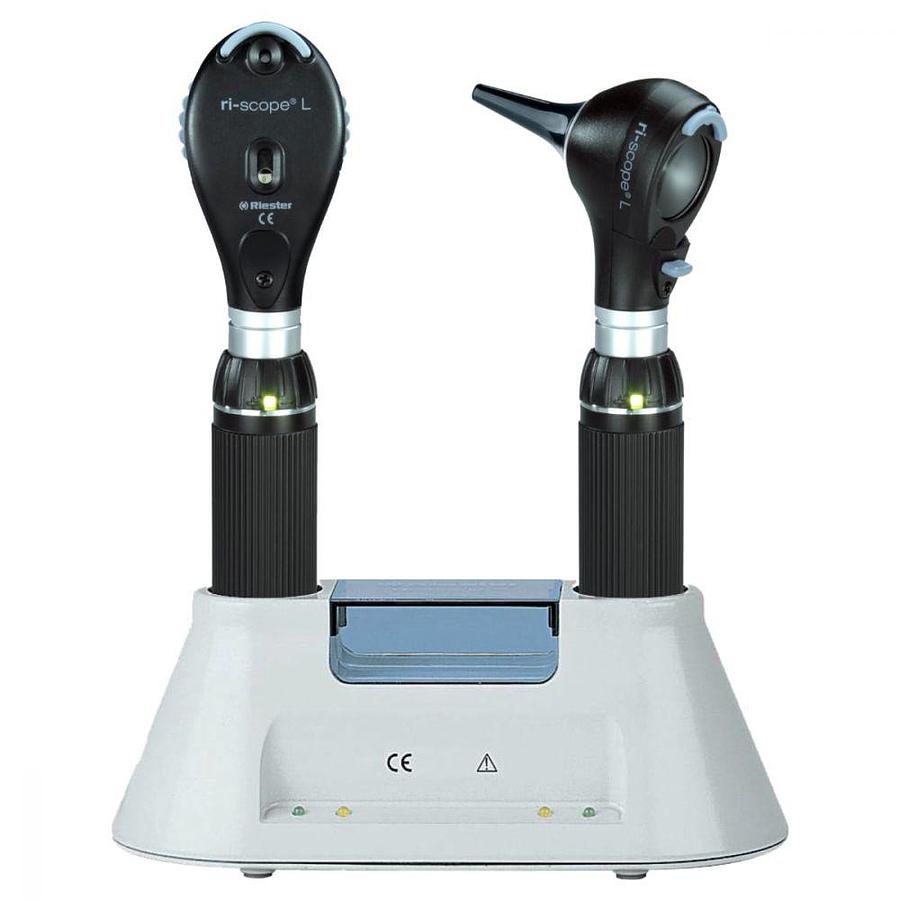

Riester Ri-Scope L Otoscopes/Ophthalmoscopes

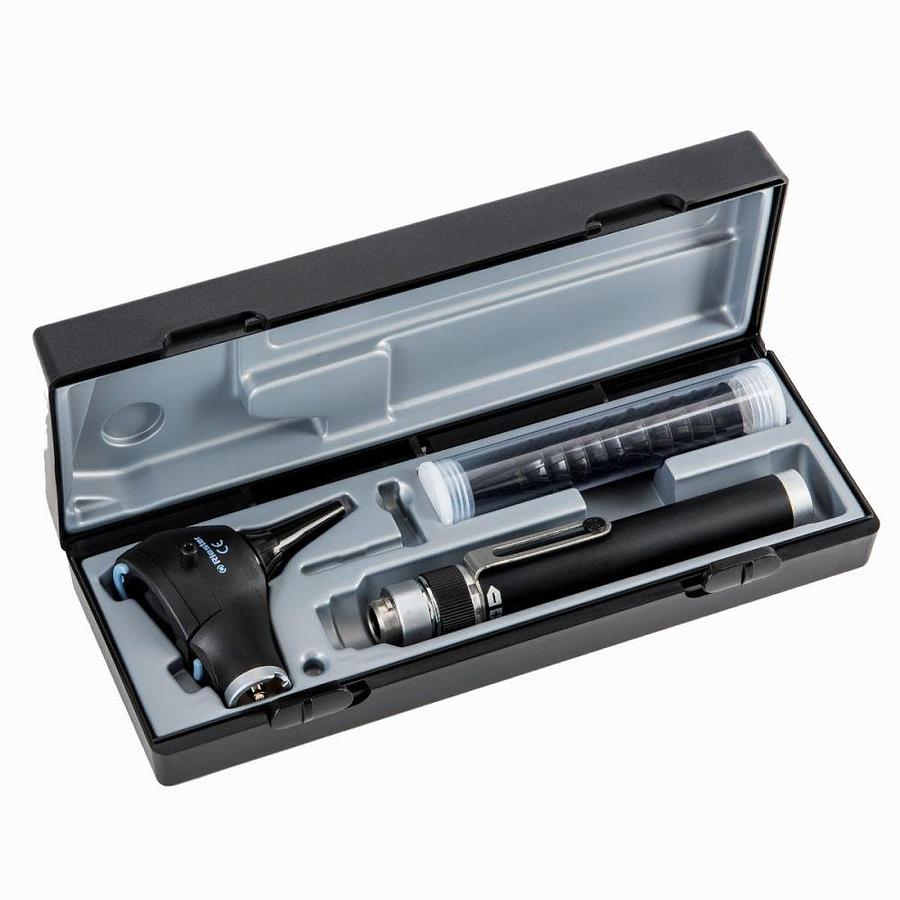

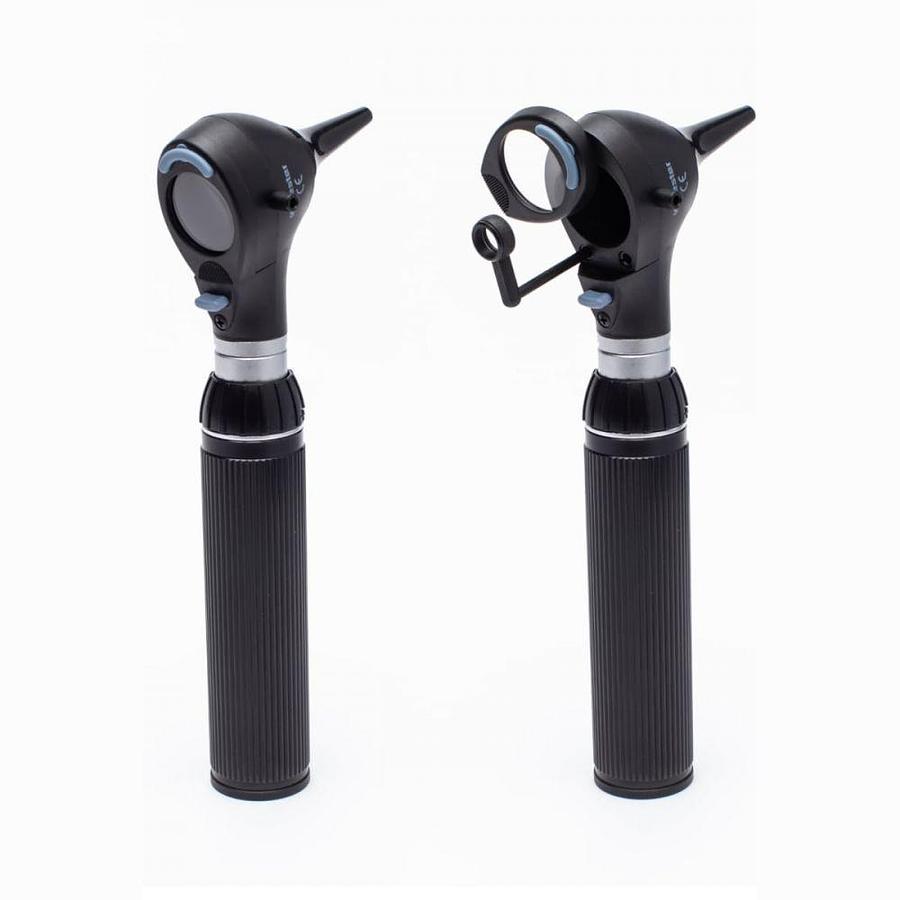

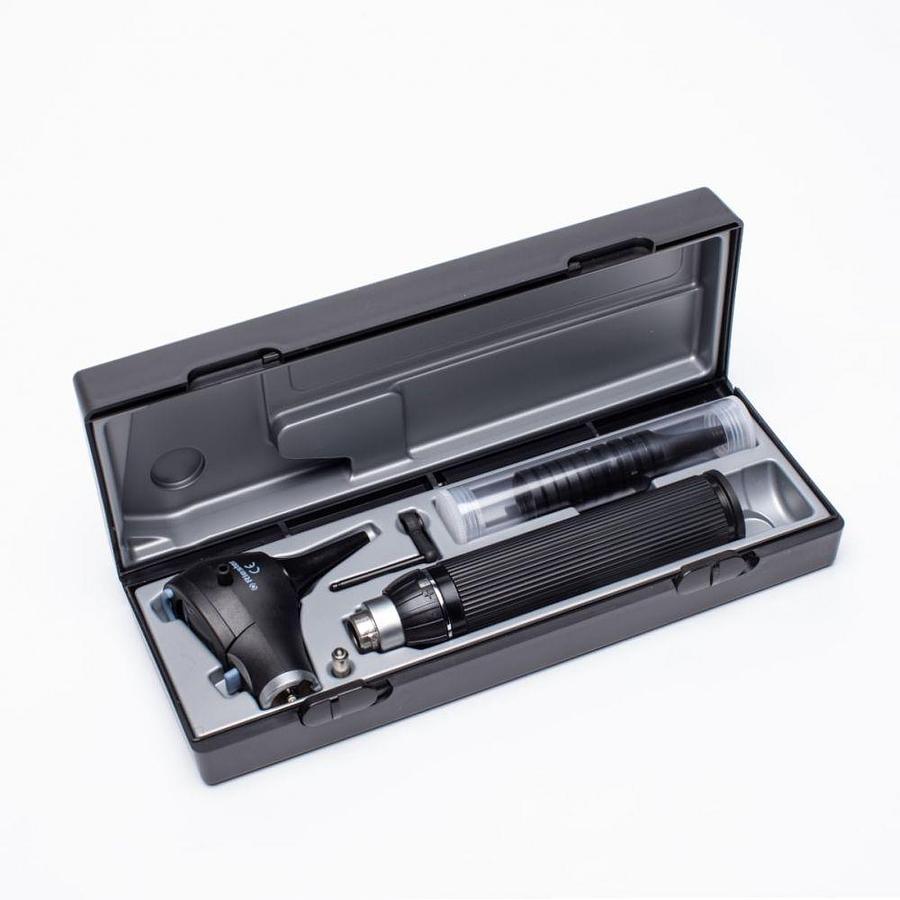

Ri-scope® L Otoscopes

Riester's ri-scope® L line of otoscopes has an option for every user. End users have the choice between LED or Xenon illumination. Additionally, Riester offer a large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations.

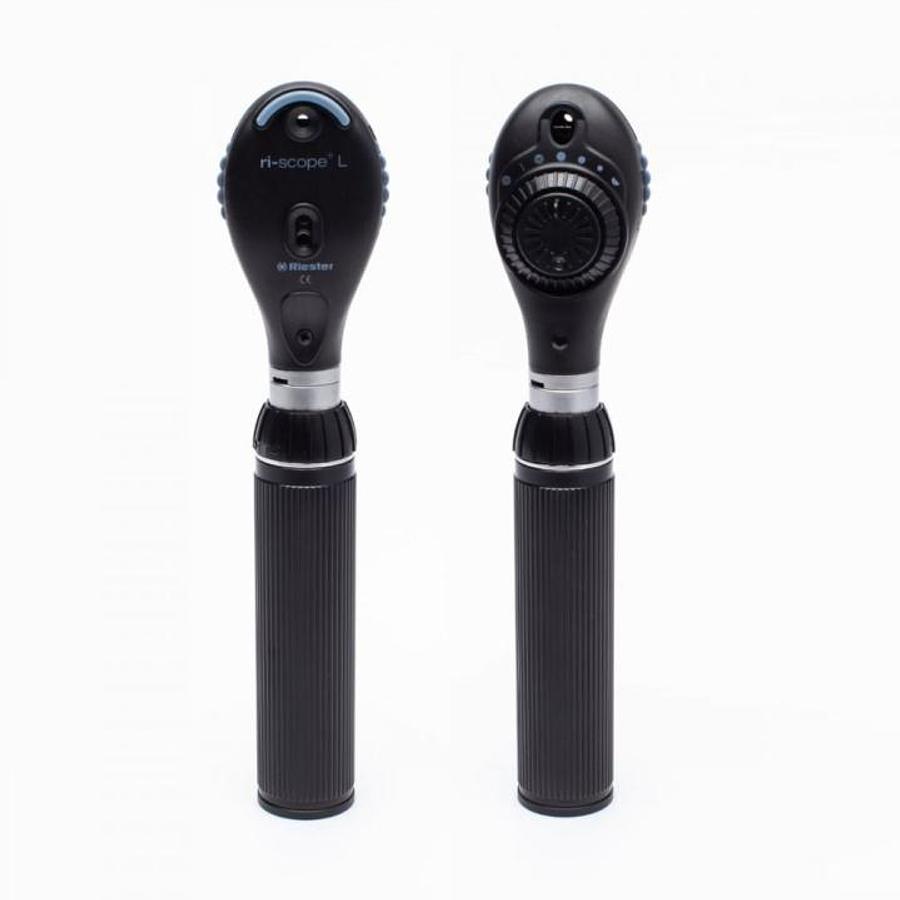

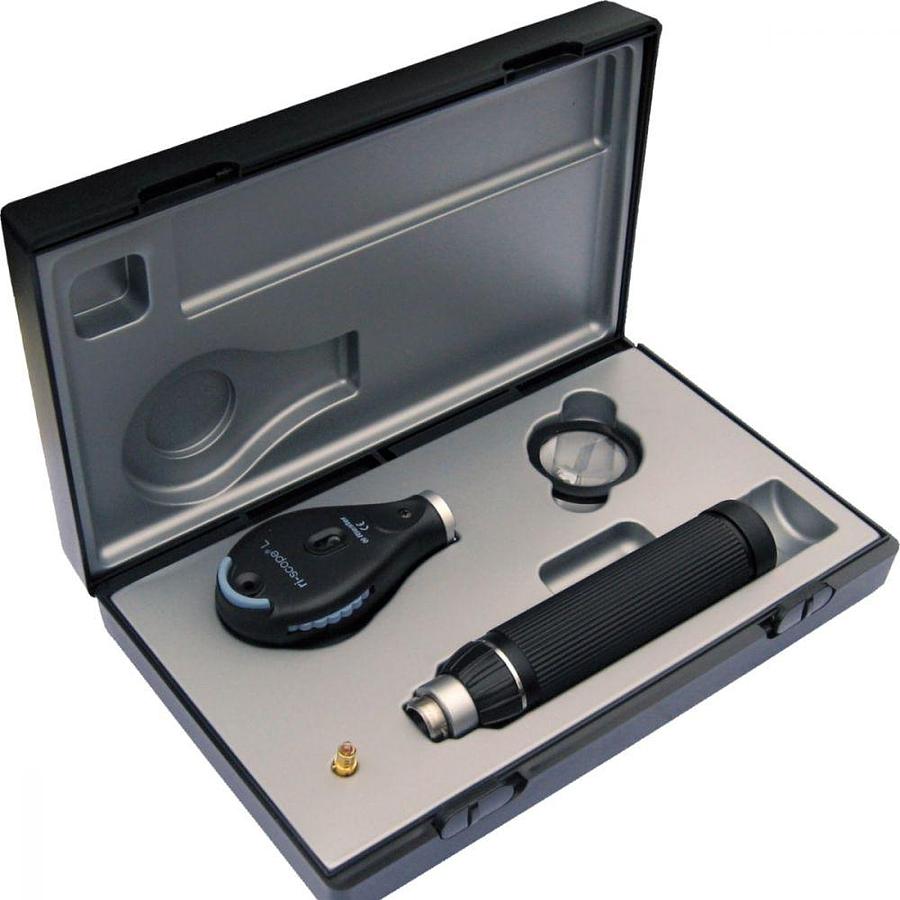

Ri-scope® L Ophthalmoscopes

Riester's ri-scope® L line of ophthalmoscopes contains our premium ophthalmoscopes options, the L1, L2 and L3 ophthalmoscopes. All tiers of ophthalmoscopes utilize optimized high-performance optics with aspherical condenser lenses, parallel beam path and are dust proof. End users have the choice between LED or Xenon illumination. We offer a large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations.

Features

Features of ri-scope® L otoscopes

All Otoscopes:

• Suitable for pneumatic tests (supplied without ball)
• Option to come with or without anti-theft device5
• Large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations



L1 Features

• Direct illumination with 2.5 V xenon, or 3.5 V xenon lamp
• Bi-directional swivelling optical glass with 3-fold magnification, optional available with operation lens with 4-fold magnification
• Metal nose, compatible with specula by other well-known manufacturers



L2 Features

• Fibre optics for optimal beaming and transmission of the light
• Bi-directional swivelling, sealing optical glass with 3-fold magnification. Optional operation lens with 4-fold magnification available (sold separately)
• Metal nose, compatible with specula by other well-known manufacturers
• Comes with integrated fibre optic throat illuminator



L3 Features

• Fibre optics for optimal beaming and transmission of the light
• Bi-directional swivelling, sealing optical glass with 3-fold magnification. Optional operation lens with 4-fold magnification available (sold separately)
• Comes with integrated fibre optic throat illuminator
• Easy-to-operate SpecEjec®specula ejection device at the rear side of the otoscope to avoid contamination
• Fitting for ri-scope® specula and enlarged conduit for instruments



Features ri-scope® L ophthalmoscopes

All Ophthalmoscopes Features:

• Optimized high-performance optics with aspherical condenser lens
• Parallel beam path
• Dust-proof lenses
• Large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations



L1 Features

• Dioptre wheel with 29 corrective lenses Plus 1-10, 12, 15, 20, 40 Minus 1-10, 15, 20, 25, 30, 35
• Easy-to-operate aperture hand-wheel with semi-circle, Small/medium/large circle fixation star, slit and red-free filter with contrast-enhancing effect.
• Includes filter wheel engageable for all apertures with symbol display, red-free filter.



L2 Features

• Dioptre wheel with 29 corrective lenses Plus 1-10, 12, 15, 20, 40 Minus 1-10, 15, 20, 25, 30, 35
• Easy-to-operate aperture hand-wheel with semi-circle, small/medium/large circle, fixation star, and slit.
• Includes filter wheel engageable for all apertures with symbol display, red-free filter, blue filter and polarization filter.



L3 Features

• Corrective lenses for 89 dioptre values Plus 1-45 in single steps, Minus 1-44 in single steps.
• Easy-to-operate aperture hand-wheel with semi-circle, small/medium/large circle, fixation star, slit and grid.
• Includes filter wheel engageable for all apertures with symbol display, red-free filter, blue filter and polarization filter.
