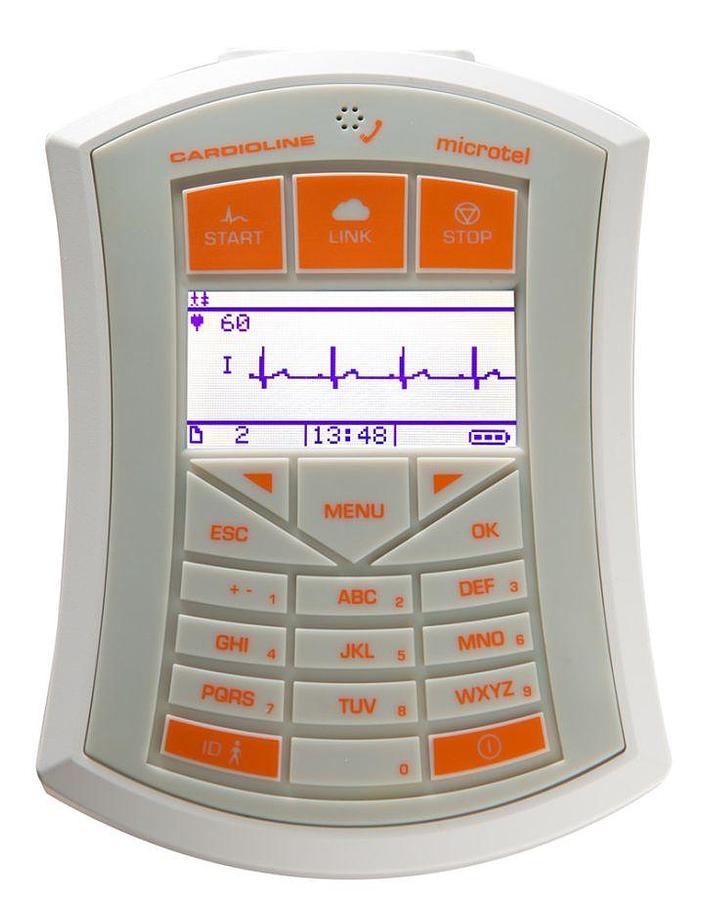

Cardioline Microtel Wireless ECG Machine With Interpretation Software

Cardioline Microtel is a 7-12 lead ECG acquirer fitted with a display and keyboard, the basic version of which can acquire and transmit an ECG trace in analogue format to a remote PC via sound coupling.

The device also has the optional possibility of storing up to 40 ECGs in SCP digital format and transmitting them to a local PC via a USB cable or via a wireless connection such as Bluetooth.

There are 2 product versions available, one without a Bluetooth interface and the other with Bluetooth installed:

• Cardioline Microtel
• Cardioline Microtelbt

Features

• Standard and/or rechargeable AA batteries
• System display that allows at least 1 ECG channel to be monitored (password protected service, disabled by default)
• Functional keyboard for recording operations and sending ECG tests
• Minimized alpha-numeric keyboard for entering patient data (disabled in the basic product)
• Ability to simultaneously acquire and store 12 standard leads acquired from a 10 wire cable, or 7 leads (6 peripheral + 1 precordial) acquired from a 5 wire cable.
• Ability to transmit the ECG in an analogue format via sound coupling.



Optional functional specifications:

• Digital Option
  Possibility of managing the ECG test in SCP format with storage of up to 40 ECGs. The file is identified by date-time acquisition and through patient data, which can be entered on the minimized alpha-numerical keyboard and system display. Transmission of the ECG file in digital format to the PC via USB port



Bluetooth version: Cardioline microtelbt

• The product has the same basic functional characteristics as the previous version, but also includes the Digital Option.
• Transmission of the ECG file can occur via the USB port and also via the wireless Bluetooth channel.
