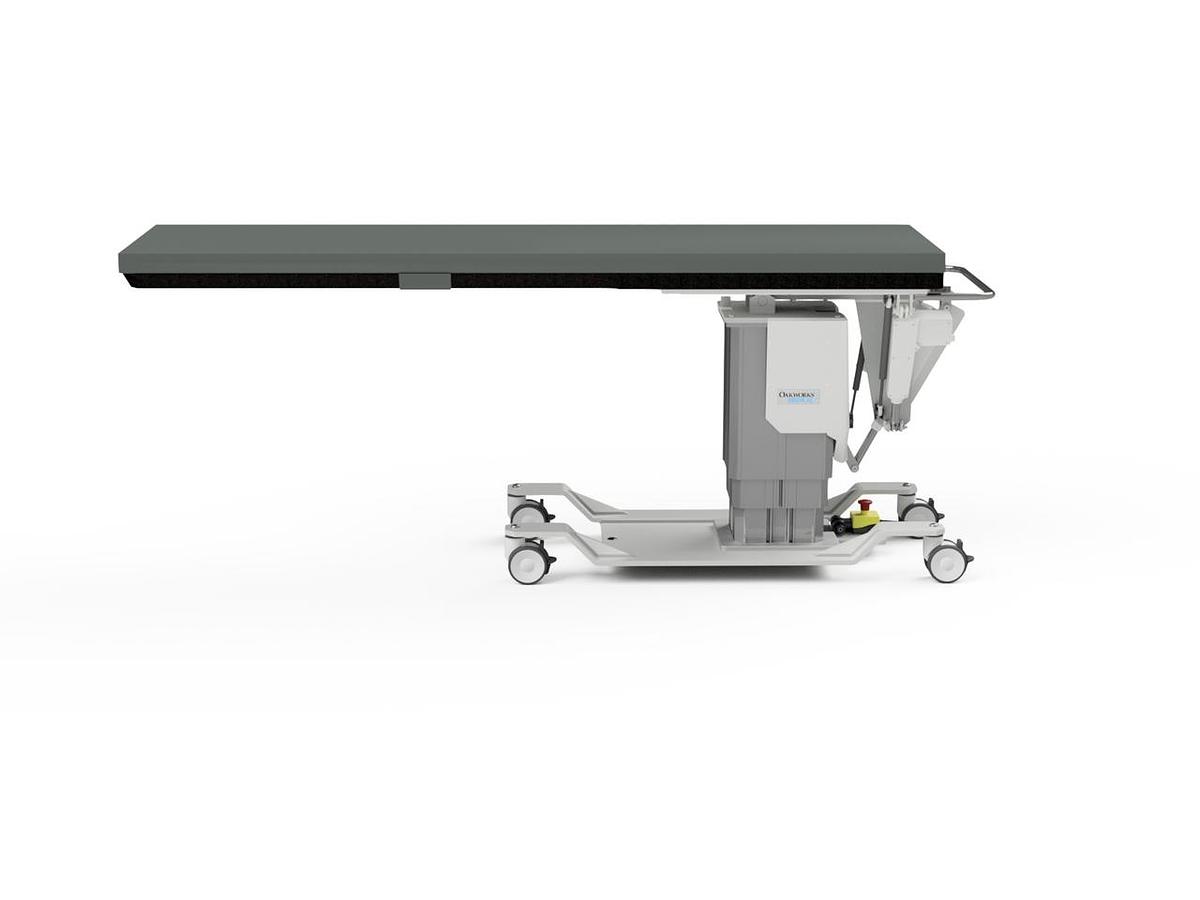

Oakworks CFPM300 Imaging Table

Oakworks CFPM300 Imaging Table with Integrated Headrest (Model 75208-T01)

The Oakworks CFPM300 Imaging Table with Integrated Headrest (Model 75208-T01) is a premium, high-capacity imaging table engineered for fluoroscopy-guided procedures, pain management, orthopedic imaging, and interventional diagnostics. Manufactured by Oakworks, the CFPM300 series is known for its exceptional radiolucency, ergonomic positioning, and long-term clinical durability.

This model features a carbon fiber radiolucent tabletop with an integrated headrest, providing stable head and neck support without compromising image quality. Its cantilevered C-arm-compatible base offers unobstructed imaging access along the full length of the table, while the floating tabletop and motorized height adjustment allow precise, efficient patient positioning during live imaging.

Key Features

• Radiolucent Carbon Fiber Tabletop
  Advanced carbon fiber construction minimizes attenuation and image artifact, delivering superior fluoroscopic image clarity.

• Integrated Radiolucent Headrest
  Built-in headrest provides consistent patient support while maintaining full imaging compatibility and workflow efficiency.

• Cantilevered C-Arm Compatible Base
  Open pedestal design eliminates base interference, enabling full C-arm rotation and head-to-toe imaging access.

• Floating Tabletop (Two-Way Motion)
  Allows longitudinal and lateral float, enabling fine positioning adjustments without moving the patient or base.

• Motorized Height Adjustment
  Smooth electric lift supports rapid transitions between patient transfer height and optimal working height for clinicians.

• Heavy-Duty Clinical Construction
  Designed for high-volume clinical use with excellent stability under load.

• Accessory Rail Compatibility
  Supports patient positioning accessories such as straps, armboards, and supports as required for procedural protocols.

Radiolucent Carbon Fiber Tabletop
Advanced carbon fiber construction minimizes attenuation and image artifact, delivering superior fluoroscopic image clarity.

Integrated Radiolucent Headrest
Built-in headrest provides consistent patient support while maintaining full imaging compatibility and workflow efficiency.

Cantilevered C-Arm Compatible Base
Open pedestal design eliminates base interference, enabling full C-arm rotation and head-to-toe imaging access.

Floating Tabletop (Two-Way Motion)
Allows longitudinal and lateral float, enabling fine positioning adjustments without moving the patient or base.

Motorized Height Adjustment
Smooth electric lift supports rapid transitions between patient transfer height and optimal working height for clinicians.

Heavy-Duty Clinical Construction
Designed for high-volume clinical use with excellent stability under load.

Accessory Rail Compatibility
Supports patient positioning accessories such as straps, armboards, and supports as required for procedural protocols.

Integrated Headrest shown here.

Warranty:

• 3 years parts
• 2 years labor

Features:

• Industry's Largest Adjustable Height Range of 26"- 44"
• 56" Metal Free Imaging Space
• Integrated Headrest
• Cost Effective 3 Movement Table
• 500 lb Patient Weight Capacity

Electrical & Control Specifications

• Lift & Motion System:

• Medical-grade electric actuators

• Quiet, vibration-free operation suitable for imaging environments

Power Requirements:

• 120V AC

• 60 Hz

• Single-phase

120V AC

60 Hz

Single-phase

Control Interface:

• Hand control and/or foot control (configuration dependent)

Hand control and/or foot control (configuration dependent)

Lift & Motion System:

• Medical-grade electric actuators

• Quiet, vibration-free operation suitable for imaging environments

Medical-grade electric actuators

Quiet, vibration-free operation suitable for imaging environments

Positioning & Motion Capabilities

Tabletop Motion:

• Longitudinal float

• Lateral float

Longitudinal float

Lateral float

These capabilities support precise imaging alignment, reduce procedure time, and improve clinician ergonomics.

Clinical Applications

• Pain management procedures

• Fluoroscopy-guided injections

• Orthopedic and spine imaging

• Diagnostic imaging exams

• Ambulatory surgery centers (ASCs)

• Hospital imaging and procedure suites

Pain management procedures

Fluoroscopy-guided injections

Orthopedic and spine imaging

Diagnostic imaging exams

Ambulatory surgery centers (ASCs)

Hospital imaging and procedure suites

Technical Specifications

Backend Entry Fields

Use the following values directly in your backend fields:

These measurements are appropriate for shipping calculations, room planning, and consistent catalog presentation across your Oakworks CFPM imaging tables.}

Why Choose the Oakworks CFPM300 with Integrated Headrest?

The CFPM300 Imaging Table with Integrated Headrest delivers a high-end balance of imaging performance, ergonomic positioning, and patient comfort. With its floating carbon fiber tabletop, cantilevered C-arm access, and integrated head support, it is an excellent choice for facilities seeking advanced fluoroscopic capability at a new value.

Accessories:

Options:

Option

N°

Integrated Headrest Top- 2" Pad, Hand Control

3 motion- Integrated Headrest Top- 2" Pad, Hand Control

Rectangular Top- 2" Pad, Hand Control

3 motion- Rectangular Top- 2" Pad, Hand Control

81810

5” (13cm) casters

Upgrade from the standard 4” (10cm)

65427

Foot Control (CFPM300)

 multi-functional with cradle on table base

75074

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com
