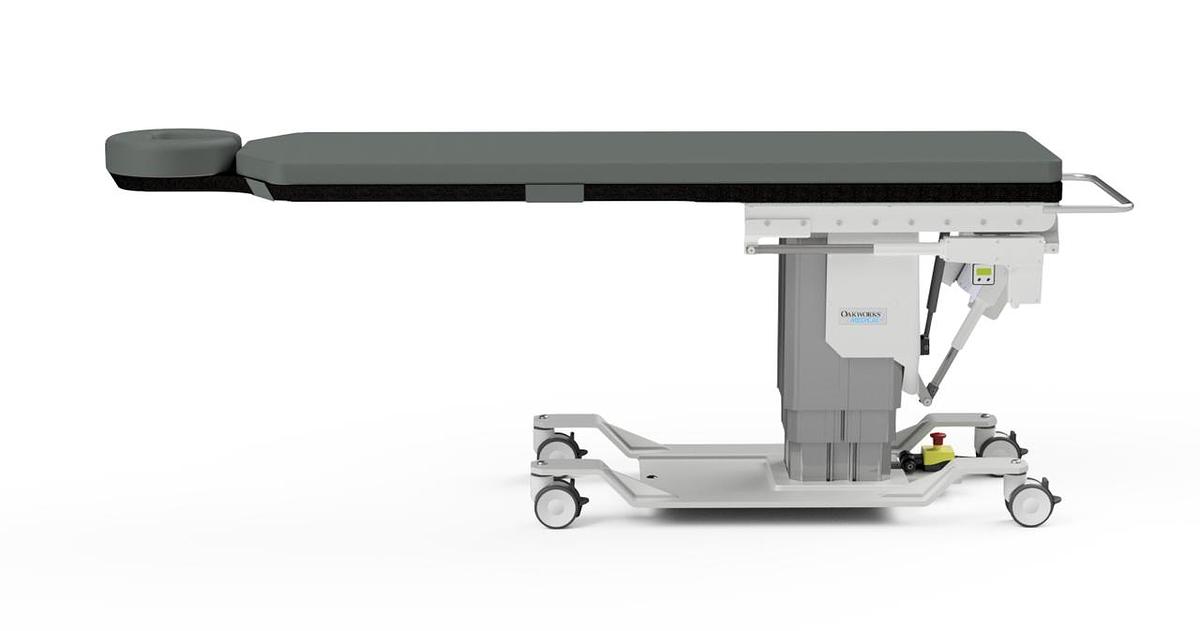

Oakworks CFPM301 Imaging Table

Oakworks CFPM301 Imaging Table with Integrated Headrest (Model 75211-T01)

The Oakworks CFPM301 Imaging Table with Integrated Headrest (Model 75211-T01) is a premium, high-capacity imaging table designed for fluoroscopy-guided procedures, pain management, orthopedic imaging, and interventional diagnostics. Manufactured by Oakworks, the CFPM301 offers advanced patient positioning, superior radiolucency, and exceptional structural stability for demanding clinical environments.

This model features a carbon fiber radiolucent tabletop with an integrated headrest, providing secure head and neck support without compromising imaging clarity. Its cantilevered C-arm-compatible base ensures unobstructed imaging access along the full length of the table, while the floating tabletop and motorized height adjustment allow clinicians to position patients precisely and efficiently during live imaging.

Integrated Headrest shown here.

Warranty:

• 3 years parts
• 2 years labor

Key Features

• Radiolucent Carbon Fiber Tabletop
  High-strength carbon fiber construction minimizes attenuation and image artifact, delivering excellent fluoroscopic image quality.

• Integrated Radiolucent Headrest
  Built-in headrest provides consistent patient support while maintaining full C-arm compatibility and imaging access.

• Cantilevered C-Arm Compatible Base
  Open pedestal design eliminates base interference, allowing full C-arm rotation and head-to-toe imaging coverage.

• Floating Tabletop (Two-Way Motion)
  Enables longitudinal and lateral float, allowing fine positioning adjustments without moving the patient or base.

• Motorized Height Adjustment
  Smooth electric lift system supports rapid transitions between patient transfer height and optimal working height.

• Heavy-Duty Clinical Construction
  Engineered for high-volume clinical use with excellent stability under load.

• Accessory Rail Compatibility
  Supports patient positioning accessories such as straps, armboards, and safety supports as required.

Radiolucent Carbon Fiber Tabletop
High-strength carbon fiber construction minimizes attenuation and image artifact, delivering excellent fluoroscopic image quality.

Integrated Radiolucent Headrest
Built-in headrest provides consistent patient support while maintaining full C-arm compatibility and imaging access.

Cantilevered C-Arm Compatible Base
Open pedestal design eliminates base interference, allowing full C-arm rotation and head-to-toe imaging coverage.

Floating Tabletop (Two-Way Motion)
Enables longitudinal and lateral float, allowing fine positioning adjustments without moving the patient or base.

Motorized Height Adjustment
Smooth electric lift system supports rapid transitions between patient transfer height and optimal working height.

Heavy-Duty Clinical Construction
Engineered for high-volume clinical use with excellent stability under load.

Accessory Rail Compatibility
Supports patient positioning accessories such as straps, armboards, and safety supports as required.

Features:

• Industry's Largest Adjustable Height Range of 26"- 44"
• 56" Metal Free Imaging Space
• Integrated Headrest
• Cost Effective 3 Movement Table
• 500 lb Patient Weight Capacity

• Carbon Fiber Top - 56 in. Metal free imaging space
• Top Dimentions - 22 in. (56cm) wide x 84 in. (214cm) long
• Motion 1 Electric Height Range 26 in. - 44 in. (66-112cm)
• Motion 2 Electric Trendelenburg tilt +15°/-11°
• Motion 3 Electric Longitudinal travel 10 in. (25cm)
• Controls - Multi-function hand control
• Weight Capacity - 500 lb (227kg)
• Product Weight - 475 lb (216kg)
• Safety Listings - CE marked, cETLus approved, CB Certificate

Electrical & Control Specifications

• Lift & Motion System:

• Medical-grade electric actuators

• Quiet, vibration-free operation suitable for imaging environments

Power Requirements:

• 120V AC

• 60 Hz

• Single-phase

120V AC

60 Hz

Single-phase

Control Interface:

• Hand control and/or foot control (configuration dependent)

Hand control and/or foot control (configuration dependent)

Lift & Motion System:

• Medical-grade electric actuators

• Quiet, vibration-free operation suitable for imaging environments

Medical-grade electric actuators

Quiet, vibration-free operation suitable for imaging environments

Positioning & Motion Capabilities

Tabletop Motion:

• Longitudinal float

• Lateral float

Longitudinal float

Lateral float

These capabilities reduce procedure time, improve imaging accuracy, and enhance clinician ergonomics.

Clinical Applications

• Pain management procedures

• Fluoroscopy-guided injections

• Orthopedic and spine imaging

• Diagnostic imaging exams

• Ambulatory surgery centers (ASCs)

• Hospital imaging and procedure suites

Pain management procedures

Fluoroscopy-guided injections

Orthopedic and spine imaging

Diagnostic imaging exams

Ambulatory surgery centers (ASCs)

Hospital imaging and procedure suites

Technical Specifications

Backend Entry Fields

Use the following values directly in your backend fields:

These measurements are appropriate for shipping calculations, room planning, and consistent catalog presentation across your Oakworks CFPM imaging tables.

Why Choose the Oakworks CFPM301?

The CFPM301 Imaging Table with Integrated Headrest delivers a refined balance of advanced imaging performance, ergonomic patient positioning, and long-term reliability. With its floating carbon fiber tabletop, cantilevered C-arm access, and integrated head support, it is an excellent solution for facilities seeking high-end fluoroscopic capability at a competitive value.

Accessories:

Options:

Option

N°

Integrated Headrest Top

3 motion- Integrated Headrest Top- 2" Pad, Hand Control

Rectangular Top

3 motion- Rectangular Top- 2" Pad, Hand Control

81811

5” (13cm) casters

Upgrade from the standard 4” (10cm)

65427

Foot Control (CFPM301)

 multi-functional with cradle on table base

75076

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com
