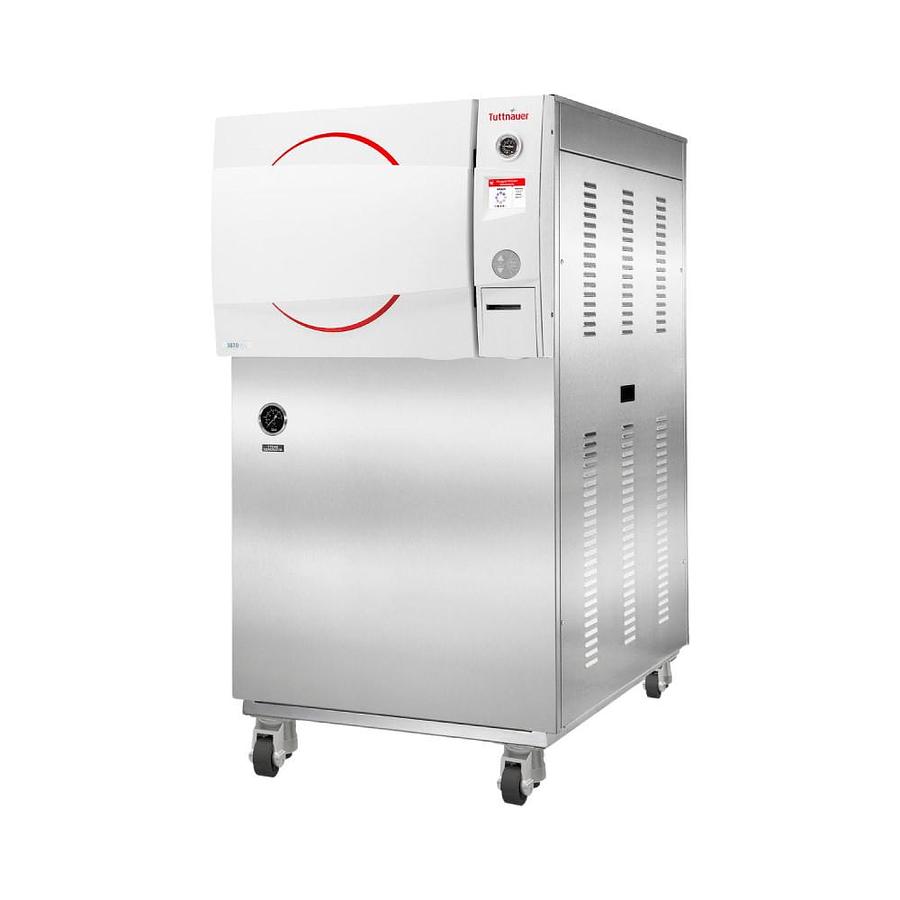

Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave

Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave

$26,085

Description

Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave

The Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave is an 85 liter autoclave sterilizer that's designed for large clinics and ASC's. It produces hospital grade sterilization with a medium load capacity, and is most ideal for medical clinics, dental clinics, and operating rooms.

Warranty Tuttnauer 3870HSG-WS:

2 Years.

As the name suggests, the Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave contains a built-in vacuum system designed for fractionated pre vacuum air removal and post vacuum drying. This removes air pockets from the chamber to ensure full steam sterilization on the entire load. The post vacuum process dries the load efficiently for a bone-dry finish.

The HSG-WS model specifically has been designed for water saving, through an efficient recycling system. In total, it will utilize only five liters of tap water per day. In terms of utility connection, it can be hooked up to existing utilities for distilled water, tap water, and electricity, or can be independent of utilities with only a power connection needed. With the independence feature, the water reservoirs must be manually filled prior to cycles.

Safety features include double-locking doors to prevent accidental openings while the chamber is pressurized, as well as a control lock-out switch that won't start a cycle until the door is locked.

Pre & Post Vacuum Performance

  • Pre & Post Vacuum Air Removal (Class B), closed-door drying
  • Plug & Play: easy to install, no need to connect to local utilities (unless required by the facility)

Specifications

ManufacturerTuttnauer
ConditionUsed
Large 85L chamber capacity (22.5 Gallons)15"x30"
Mobilewheeled-in delivered
Water Saving (WS)uses up to 5 Liters per day
Compactnarrow design
Chamber Dimensions15.2" x 29.9"
Chamber Volume85 liters
No. of Trays2
Tray DimensionsOverall Dimensions: 28.4" x 53.8" x 46.5"
Small11.3”x 1”x26.6”
Large13.8" x 1" x 26.6"
Voltage/Frequency3 ph, 230 Volts, 25 Volts, 25 Amp., 60Hz
Power9 kW
Current13.6A
Weight397
