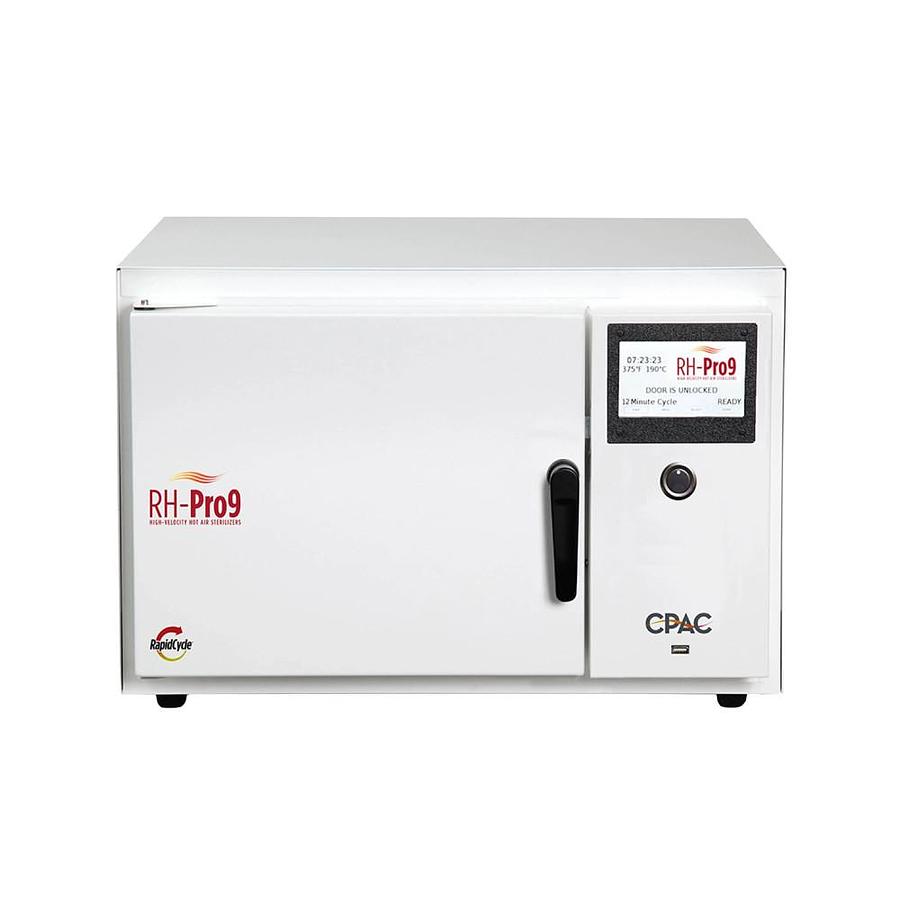

CPAC RapidHeat RH-Pro9 High-Velocity Hot Air Sterilizer

A proven advancement in “RapidCycle” sterilization, the RH-Pro9 sterilizer will raise your level of sterilization efficiency in a convenient size! Using Cutting-Edge HVHA (High-Velocity Hot Air) technology, the RH-Pro9 provides the fastest instrument turnaround of any FDA-Cleared sterilization technology. No steam or water means no lengthy drying cycle with longer instrument life free of corrosion.

Recognizing the need for low-temperature cycles for both sterilization of heat-sensitive medical devices and the decontamination of N95 FFR Masks during pandemic shortages, CPAC has incorporated universal processing versatility into its standard RH-Pro11 and RH-Pro9 Sterilizers.

Warranty CPAC RH-Pro9:

3 Years

Rectangular chambers with more uniform capacity
Easy and simple touch screen operation
Non-corrosive waterless environment
Quiet operation with NO emissions
Uses 85% less energy than steam

Faster sterilization reduces workarounds
No drying cycle means no short-cuts or delays
No more wet wraps and instruments
Saves $$ on instrument replacement from corrosion
Eliminates high sterilizer maintenance and repair costs

Allows user to validate and verify 12-log kill sterilization
Choice of three low-temperature cycles
Eliminates heat-sensitive device concerns
Time/temperature profiles equivalent to steam

34-minute cycle @ 175°F
Assures mask returns to original user
Maintains mask performance/function over multiple cycles
No drying or aeration required

NEW CIR Thermal Sensor Replaces Chemical Indicators:
To independently measure and confirm load exposure to the conditions required for all RapidHeat cycles, CPAC provides with each sterilizer a CPAC CIRTM Thermal Sensor.The CIR Thermal Sensor has been designed to replace often unreliable and inaccurate chemical indicators.

• Independent confirmation of each cycle time-temperature profile

• Eliminates dependency on fallible chemical indicators
• Confirms the time-temperature required to achieve spore inactivation
• Demonstrates correlation with sterilizer-controlled time-temperature

110-120V, 60Hz, 1400 Watts warm up, 300 Watts operating

220-240V, 50Hz, 1400 Watts warm up, 300 Watts operating

Sterilization Times:

Cycle 1 – 6 minutes for unwrapped instruments
Cycle 2 – 8 minutes for hand pieces and medical drills
Cycle 3 – 12 minutes for wrapped instruments
Wrapped Cassettes -12 Minute Cycle; 36 Minutes

Included with Sterilizer:

Instruction & Care Card
User Manual
Three Instrument Trays
Tray Removal Safety Gloves

Instruction & Care Card
User Manual
Three Instrument Trays
Tray Removal Safety Gloves

Instruction & Care Card
User Manual
Three Instrument Trays
Tray Removal Safety Gloves

Dimensions:

Options:

Specifications

Manufacturer	CPAC EQUIPMENT, INC.
Model	Electrical
Condition	Used
Chamber Capacity	1163 cubic inches (5 gal/19 liters)
Instrument Tray Size (ID)	7.3” W x 12” D x 0.85” H
Unit Weight	60 lbs. (27kg)
Shipping Weight	75 lb.s (34kg)
Electrical	110-120V, 60Hz, 1400 Watts warm up, 300 Watts operating 220-240V, 50Hz, 1400 Watts warm up, 300 Watts operating
Sterilization Temperature	375º Fahrenheit (190º Celsius)
Warranty	Three-Year (parts and labor)
RH-Pro9	110-120V, 60Hz, 1400 Watts warm up, 300 Watts operating
RH-Pro9-230v	220-240V, 50Hz, 1400 Watts warm up, 200 Watts operating
Low-Temperature Cycle Options	CPAC has created low-temperature cyc:les to process devices/ instruments that are known or could potentially become degraded by RapidHeat’s standard High-Temperature cycle of 375°F
Mask Decontamination Cycle Resolves	N95 FFR Mask Shortages Under FDA’s EUA granted during the recent COVID-19 pandemic, CPAC created a special cycle to decontaminate N95 masks that are in critical shortage
Choosing the Right Size	• Need to conserve counter space – RH-Pro9• Require larger single load capacity – RH-Pro11• Need ease of mobility and handling – RH-Pro9• Using large cassettes and packs – RH-Pro11
Height	13.625
Width	19.6
Depth	20.00
Weight	71.8
Tray Dimensions	7.3 x 11.9 Three Trays
Equipment Options	Pouch Rack
