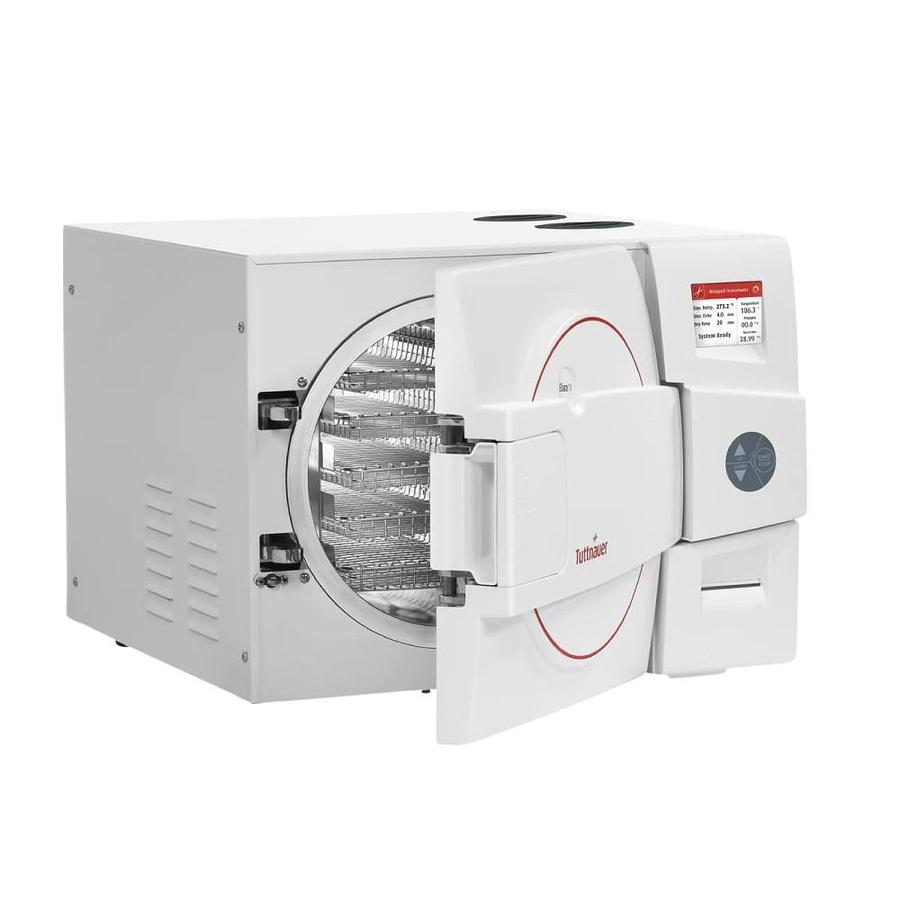

Tuttnauer Elara11 Pre-Post Vacuum Class B Sterilizer With printer

Tuttnauer Elara11 Pre-Post Vacuum Class B Sterilizer

With this sterilizer, even the most difficult loads will reach Sterility Assurance Level. The Elara11 can sterilize unwrapped instruments in as little as four minutes, and includes a delicate setting which can sterilize in 20 minutes.

Class B performance is achieved with a built-in vacuum pump used for pre- vacuum air removal eliminating air pockets from all load types and maximizing efficient steam penetration throughout the entire load. After the sterilization stage the vacuum pump is used for efficient post-vacuum drying.

The Elara11 is perfect for medical, dental, or veterinary clinic needs.

Warranty:

Features:

• Includes Printer
• Better accessibility with front filling option, EZFill, instead of traditional top water filling.
• Includes EZView, a multi color display which provides easy to read cycle information in real time and from a distance.
• EZGlide door, with its modern design, makes opening and closing easy.
• Clean and Waste water reservoirs, which reduce cleaning and maintenance and provide a clean steam for each cycle.
• Continuously draining water reservoir which eliminates the need to manually drain waste reservoir.
• Memory storage of up to 100 cycles.
• Large Capacity chamber.
• Can accommodate four large 8" x 11" and 8" x 5.5" cassettes.
• Designed to meet current safety and sterilization standards (ANSI/AAMI ST55).
• Minimum tabletop depth of 24
• Standard full size cassette is 8'" x 11" and standard half size cassette is 8" x 5.5"
• Requires a voltage between 220V and 235V for proper operation . Voltage outside this area will require a buck/ boost transformer (0.5KVA)

• Includes Printer
• Better accessibility with front filling option, EZFill, instead of traditional top water filling.
• Includes EZView, a multi color display which provides easy to read cycle information in real time and from a distance.
• EZGlide door, with its modern design, makes opening and closing easy.
• Clean and Waste water reservoirs, which reduce cleaning and maintenance and provide a clean steam for each cycle.
• Continuously draining water reservoir which eliminates the need to manually drain waste reservoir.
• Memory storage of up to 100 cycles.
• Large Capacity chamber.
• Can accommodate four large 8" x 11" and 8" x 5.5" cassettes.
• Designed to meet current safety and sterilization standards (ANSI/AAMI ST55).
• Minimum tabletop depth of 24
• Standard full size cassette is 8'" x 11" and standard half size cassette is 8" x 5.5"
• Requires a voltage between 220V and 235V for proper operation . Voltage outside this area will require a buck/ boost transformer (0.5KVA)

• Includes Printer
• Better accessibility with front filling option, EZFill, instead of traditional top water filling.
• Includes EZView, a multi color display which provides easy to read cycle information in real time and from a distance.
• EZGlide door, with its modern design, makes opening and closing easy.
• Clean and Waste water reservoirs, which reduce cleaning and maintenance and provide a clean steam for each cycle.
• Continuously draining water reservoir which eliminates the need to manually drain waste reservoir.
• Memory storage of up to 100 cycles.
• Large Capacity chamber.
• Can accommodate four large 8" x 11" and 8" x 5.5" cassettes.
• Designed to meet current safety and sterilization standards (ANSI/AAMI ST55).
• Minimum tabletop depth of 24
• Standard full size cassette is 8'" x 11" and standard half size cassette is 8" x 5.5"
• Requires a voltage between 220V and 235V for proper operation . Voltage outside this area will require a buck/ boost transformer (0.5KVA)

Characteristics

Chamber Dimensions

0 x L in (mm)

Overall
Dimensions
D x W x H in (mm)

Standard Cassette
Capacity **

Tray
Dimensions
D x W x H in (mm)

No.
of Trays

Voltage(V)

Frequency (Hz)

Power (W)

Current(A)

11" x 19.8”
(280 x 504)

7.5 gal
28.5 L

30" x 17.9" x 20”
(660 x 530 x 440)

16.3” x 6.7” x 0.6”
(413 x 169 x 16)

# Product

Condition

Description

Elara11 w/Printer (AUTOMATIC)

New

Standard
