Drager Narkomed GS Anesthesia Machine - Refurbished
Drager Narkomed GS Anesthesia Machine - Refurbished
$6,495
or
Call 804-495-0770
Description

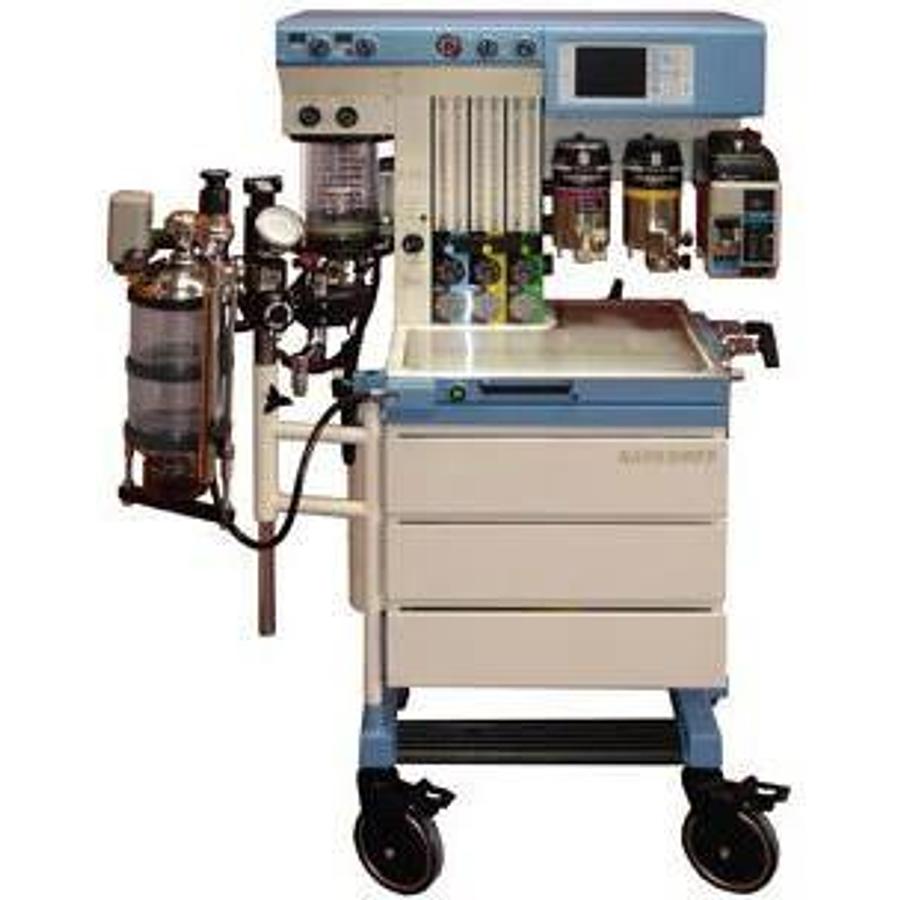

Drager Narkomed GS Anesthesia Machine - Refurbished
The Drager Narkomed GS Anesthesia Machine includes all necessary tubing, AV2+ ventilator, and choice of two vaporizers. It is patient ready, certified to proper operating specifications, and in excellent condition.
- AV2+ Ventilator
- 3 gas vaporizer configurations
- Battery Back-up
- Absorber
- 3-tier alarm system
Dimensions
Power Supply
- 220 / 240 or 117 Volts
Oxygen Monitoring
Airway Pressure Monitoring
Tidal Volume Monitoring
Ventilator
More Features
- Or large 17” color CRT display.
- User configurable display layout and colors.
- Support for up to 8 waveforms on screen.
- Support for user configurable second and third screen with a different waveform and numerical information.
- Anesthesia dedicated alarm system.
- Alarms display and adjustment page.
- 10-minute mini graphical trends referenced to set alarm limits.
- Automatic alarm limits function.
- Six user-configurable modes and a special cardiac bypass mode.
- 24-hour numerical and graphical trends.
- Split screen capability to show ST, spirometry loop, EEG, EP, or mini trends permanently.
- Four user-configurable graphical trend pages.
- Trend cursor in both graphical and numerical trends.
- Waveform snapshots to store and recall waveform samples.
- Help function.
- On-line help for menu functions.
- Open software and hardware architecture.
- Easy insertion/removal of plug-in parameter modules without interrupting other monitoring.
- Anesthesia care oriented user interface.
- Optional extended arrhythmia analysis.
- Connector for Datex-Ohmeda S/5™ Device Interfacing Solution.
- Anesthesia-specific command bar for intuitive access to the monitoring functions.
- Removable command bar brings monitor controls close to the user.
- Frame with additional module slots.
- Moves patient cables close to the patient.
- Single cable connects the Extension Frame to the s/5 anesthesia Monitor’s Central Unit.
- Reduces patient cable clutter.
- Mounts to any vertical or horizontal pole.
Display
Frame
Power Supply
Battery
- Battery operation alarm.
Trends
Alarms
- Alarm system classified into three categories according to priority in critical care; color and audio tone coded. Central alarms display and adjustment page. 10 min graphical mini trends referenced to set alarm limits.
Drager Narkomed GS Anesthesia Machine
Specifications
| Manufacturer | Drager |
| Condition | Refurbished |
| Drager Narkomed GS Anesthesia Machine | Refurbished |
| Height | 53 1/4" (135.3 cm) |
| Width | 36" (91.4 cm) |
| Depth | 27" (68.6 cm) |
| Weight | 375 lbs (170 kg) |
| Range | 0.2 - 50 I |
| Resolution | 0.1 I |
| Accuracy | 0.1% or 0.1 I whichever is higher |
| Frequency | 1-99 |
| I | E Ratio: 4:1 - 1:4.5 |
| Flow | 10 - 100 I/min |
| Tidal Vol | 50-1500 ml |
| Four display options with integrated monitor controls | 15” or 17” high-resolution color video display and 10.4” or 15” flat panel color LCD display |
| Display Size | 21.1 in diagonal |
| Display type | Active matrix color TFT LCD |
| Display resolution | SVGA resolution, 800 x 600 |
| Number of traces | up to 8 |
| Display layout and colors | User-configurable. Integrated Command Board with direct function keys, menu keys, and ComWheel for selections and adjustments in menus |
| Module capacity | 2+2 module slots |
| I/O connections | RS-232 computer serial output. 2 analog outputs. External keyboard connector |
| Network option | Compatible with Datex-Ohmeda Network for monitor-to-monitor communication and centralized viewing |
| Network and MemCard option | Activates MemCards to transfer the trended data of patient vital signs |
| Printing | Laser printing capabilities with serial printer supporting PCL5 language (Network and serial/parallel converter) |
| Recorder option | Built-in three-channel thermal array recorder |
| Mounting options | Bed mount, wall mount, and roll stand |
| Rated voltage range and frequencies | 100 to 240v ±10%, 50/60 Hz |
| Maximum power consumption | 140 VA |
| Protection class | Class I |
| Grounding | Hospital grade |
| Type | Built-in NiMH battery. (2 pcs.) |
| Capacity | Up to 1.5 h typical on full charge at 23°C |
| Recharging | When connected to mains power |
| Charging time | 10 hours to full capacity |
| Indicator | Battery bar displayed on the screen |
| Graphical | All parameters, selectable times from 30 min to 72 h |
| Numerical | Continuously measured parameters sampled every 5 minutes, NIBP and PCWP values updated after each measurement. Also, the marker triggers numerical trend updating |
| Trend cursor | In both graphical and numerical trends |
