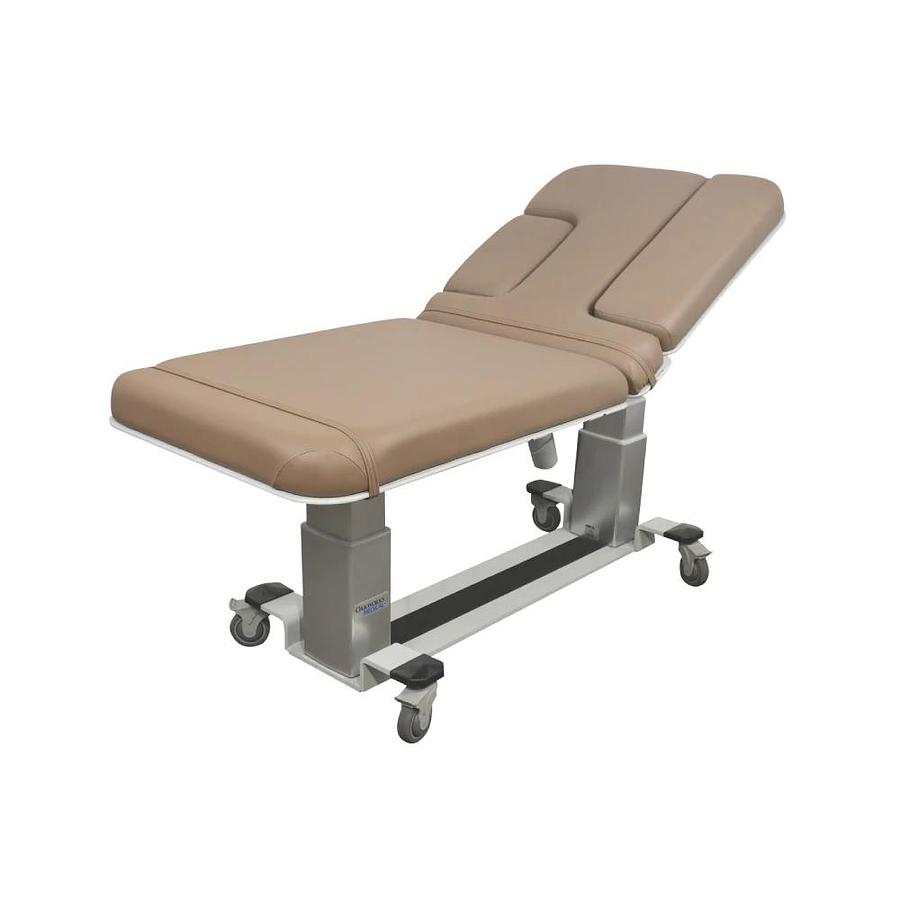

Oakworks Echocardiography Table

Oakworks Echocardiography Table

The Oakworks Echocardiography Table is a specialized diagnostic table designed to support cardiac ultrasound and echocardiography procedures with optimal patient positioning, clinician access, and long-term reliability. Manufactured by Oakworks, this table is engineered to meet the unique workflow demands of cardiology departments, outpatient diagnostic centers, and hospital imaging suites.

Featuring a cardiac cutout / drop-section design, the Oakworks Echocardiography Table allows sonographers unobstructed access to the apical imaging window, improving image acquisition while reducing physical strain during exams. Its motorized height adjustment and stable base design ensure smooth operation, patient comfort, and consistent performance throughout high-volume daily use.

Warranty:

• 3 years parts
• 2 years labor

Features:

• Electric cardio panel allows you to adjust the opening to the size you need and opens as wide as 15” (38cm). Great for left or right handed scanning.
• Large, electric access panel offers more support for side lying patients and minimizes twisting and reach for sonographers.
• 19” - 33” (48-83cm) height range supports ergonomic working heights for both echocardiograms & stress echo
• Designed by leading Ergonomic Specialists and exceeds the "Industry Standards for Sonography"
• Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer
• 2 Section Top - 30 in. (76 cm) wide x 72 in. (183 cm) long
• Backrest - 34 in. (86 cm) long
• Seat - 38 in. (97cm) long
• Motion 1 - Electric Height Range 19 in. - 33 in. (48-83cm)
• Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
• Motion 3 - Electric Fowler Backrest 0-75°
• Motion 4 - Electric Sliding Cardio Panel opens 15 in. (38cm)
• Controls - Multi-function hand control with presets controlling multiple movements

Key Features

• Cardiac Cutout / Drop-Section Design
  Provides direct access for transthoracic echocardiography, enabling improved probe positioning and enhanced image quality.

• Motorized Height Adjustment
  Electric lift system allows smooth transitions between patient transfer height and optimal scanning height, improving ergonomics for clinicians.

• Padded Upholstery with High-Density Foam
  Offers patient comfort during extended echocardiography exams while maintaining proper positioning.

• Stable Fixed Base Construction
  Designed to minimize vibration and movement during diagnostic imaging.

• Integrated Side Rails / Accessory Compatibility
  Supports positioning aids, safety straps, and accessories as required for cardiac exams.

• Compact Footprint
  Fits easily into cardiology suites, exam rooms, and imaging departments without sacrificing functionality.

Cardiac Cutout / Drop-Section Design
Provides direct access for transthoracic echocardiography, enabling improved probe positioning and enhanced image quality.

Motorized Height Adjustment
Electric lift system allows smooth transitions between patient transfer height and optimal scanning height, improving ergonomics for clinicians.

Padded Upholstery with High-Density Foam
Offers patient comfort during extended echocardiography exams while maintaining proper positioning.

Stable Fixed Base Construction
Designed to minimize vibration and movement during diagnostic imaging.

Integrated Side Rails / Accessory Compatibility
Supports positioning aids, safety straps, and accessories as required for cardiac exams.

Compact Footprint
Fits easily into cardiology suites, exam rooms, and imaging departments without sacrificing functionality.

Electrical & Control Specifications

• Medical-grade electric actuator

• Quiet, smooth operation suitable for diagnostic environments

Power Requirements:

• 120V AC

• 60 Hz

• Single-phase

120V AC

60 Hz

Single-phase

Control Interface:

• Hand control or foot control (configuration dependent)

Hand control or foot control (configuration dependent)

Lift System:

• Medical-grade electric actuator

• Quiet, smooth operation suitable for diagnostic environments

Medical-grade electric actuator

Quiet, smooth operation suitable for diagnostic environments

Positioning & Motion Capabilities

These features allow sonographers to maintain optimal posture while achieving consistent imaging results.

Recommended for:

• Cardiac exams
• Vascular exams
• All abdominal & superficial structures exams
• Musculoskeletal exams
• Biopsies

Clinical Applications

• Transthoracic echocardiography (TTE)

• Cardiac ultrasound diagnostics

• Cardiology clinics and departments

• Hospital imaging suites

• Outpatient diagnostic centers

Transthoracic echocardiography (TTE)

Cardiac ultrasound diagnostics

Cardiology clinics and departments

Hospital imaging suites

Outpatient diagnostic centers

Optional features

• Patient Lift Compatible Base(Not compatible with Central Base Locking System)
• Foot Control (H, T, F)*
• Foot Control (H, T, F,C)*
• Central Base Locking System
• Electric Upgrade Sliding Cardio Panel - left side only
• Side Rails(2)

Technical Specifications

Backend Entry Fields (for your product form)

Use the following values directly in your backend fields:

These values are appropriate for shipping estimates, room planning, and catalog consistency across your diagnostic table listings.

Accessories:

• Detachable Arm Board (84943) Use with T-rail adapter 5”(13cm) wide x 20.5” (52cm) long
• QuickLock™ Head Rest (black) & AeroCel Pad (PKG7554) Comfortable, adjustable prone or supine support (requires mounting plate)
• Table Extender (63487) 24” (61cm) wide x 12” (30cm) long (requires mounting plate)
• T-rail Adapter 8” (20cm) long  (61902) Attaches to the backrest for use with USA format T-rail attachable accessories.
• Stool- Capisco Chair (82411) (82223) (82415) (82407)
• Oakworks Professional Stool  (60342) (60389)
• Oakworks Professional Stool with Backrest (60356-T)
• Oakworks Professional Stool with Saddle Seat (60373) (60430)

Why Choose the Oakworks Echocardiography Table?

The Oakworks Echocardiography Table offers a purpose-built solution for cardiac imaging, combining ergonomic design, patient comfort, and Oakworks’ proven durability. Its cardiac cutout, motorized height adjustment, and stable construction make it an excellent choice for facilities seeking reliable echocardiography performance at a new value.

Options:

Option

N°

Accessory Mounting Plate

-

Central Base Locking

-

83033

Ultrasound EA Option-Stirrups

-

83904

Side Rails (set of 2)

-

83906

Powered Cardio Panel

 Multi & Echo tables- 30" W Only

85810

Table Option- Stirrups

-

83139

Ultrasound Option- Procedure Tray

Add procedure tray- 30" W only

83349

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com
