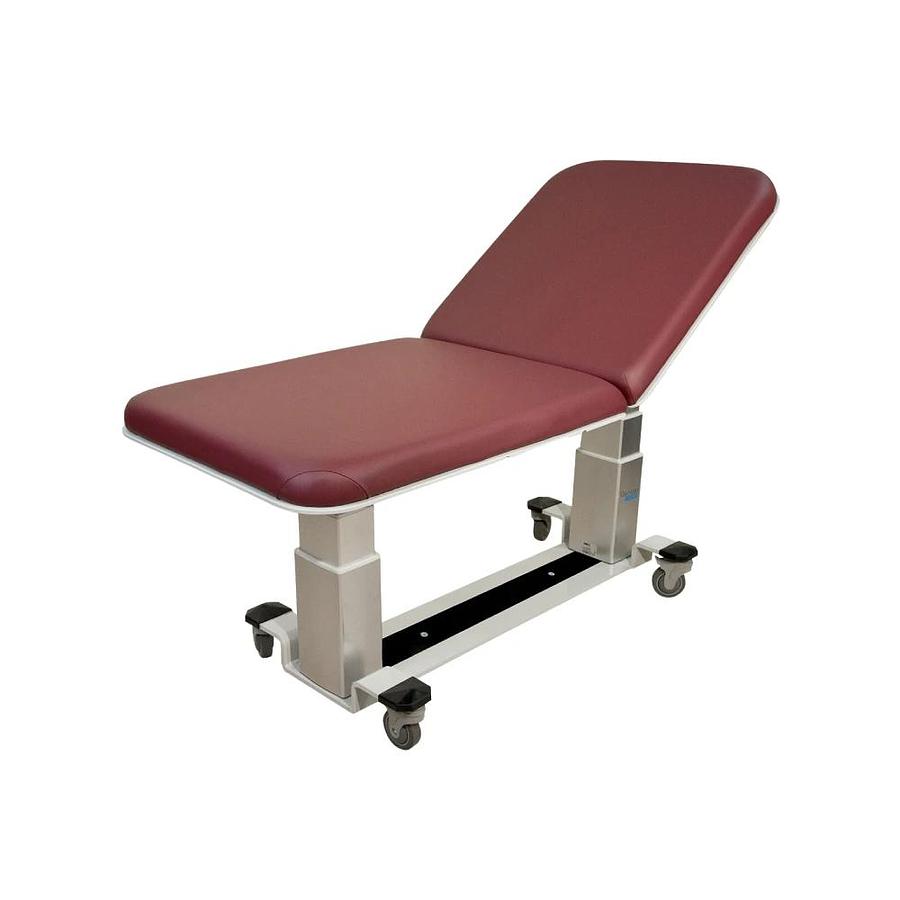

Oakworks General 2 Table with Fowler Ultrasound Table

Oakworks General 2 Table with Fowler Ultrasound Configuration — New

The Oakworks General 2 Table with Fowler Ultrasound Configuration is a versatile, medical-grade procedure table designed for ultrasound imaging, general examinations, diagnostic procedures, and outpatient clinical use. Manufactured by Oakworks, this table combines modular positioning, patient comfort, and durable construction to support a wide range of clinical workflows.

Configured with a Fowler backrest, this model allows patients to be positioned upright or semi-reclined—ideal for abdominal, vascular, OB/GYN, and general ultrasound applications. The General 2 platform is known for its flexibility, offering smooth manual adjustments, excellent stability, and compatibility with imaging accessories commonly used in diagnostic environments.

Warranty:

• 3 years parts
• 2 years labor

Features:

• 2 Section Top - 30 in. (76 cm) or 26 in. (66 cm) wide x 72 in. (183 cm) long
• Backrest - 34 in. (86 cm) long
• Seat - 38 in. (97cm) long
• Motion 1 - Electric Height Range 19 in. - 33 in. (48-83cm)
• Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
• Motion 3 - Electric Fowler Backrest 0-75°
• Controls - Multi-function hand control
• Weight Capacity - 550lb (250kg)
• Product Weight - 359lb (163kg)
• Removable Padding System - 3 in. (8cm) Comfort Foam ™
• Included Features - 4 in. (10cm) locking casters, Paper roll holder
• Warranty - 3 years parts, 2 years labor

Key Features

• Fowler Backrest Configuration
  Adjustable back section allows upright and semi-reclined positioning, improving patient comfort and clinician access during ultrasound exams.

• Multi-Section Tabletop Design
  Supports flexible patient positioning for a variety of diagnostic and general medical procedures.

• Manual Height Adjustment
  Smooth, reliable lift system allows clinicians to adjust table height for ergonomic scanning and patient transfer.

• High-Density Comfort Padding
  Medical-grade foam upholstery enhances patient comfort during extended imaging or examination sessions.

• Stable, Rigid Base Construction
  Engineered to minimize movement during imaging, ensuring consistent image quality and patient safety.

• Accessory Compatibility
  Supports ultrasound positioning aids, straps, bolsters, and other diagnostic accessories as needed.

Fowler Backrest Configuration
Adjustable back section allows upright and semi-reclined positioning, improving patient comfort and clinician access during ultrasound exams.

Multi-Section Tabletop Design
Supports flexible patient positioning for a variety of diagnostic and general medical procedures.

Manual Height Adjustment
Smooth, reliable lift system allows clinicians to adjust table height for ergonomic scanning and patient transfer.

High-Density Comfort Padding
Medical-grade foam upholstery enhances patient comfort during extended imaging or examination sessions.

Stable, Rigid Base Construction
Engineered to minimize movement during imaging, ensuring consistent image quality and patient safety.

Accessory Compatibility
Supports ultrasound positioning aids, straps, bolsters, and other diagnostic accessories as needed.

Positioning & Motion Capabilities

This configuration supports efficient workflow while maintaining simplicity and reliability.

Clinical Applications

• Ultrasound imaging (abdominal, vascular, OB/GYN)

• General medical examinations

• Diagnostic procedures

• Outpatient clinics and imaging centers

• Hospital exam and procedure rooms

Ultrasound imaging (abdominal, vascular, OB/GYN)

General medical examinations

Diagnostic procedures

Outpatient clinics and imaging centers

Hospital exam and procedure rooms

Recommended for:

• All abdominal & superficial structures exams
• Musculoskeletal exams
• Vascular exams
• Biopsies

• Warranty: 3 years parts, 2 years labor

Technical Specifications

Backend Entry Fields

Use the following values directly in your backend fields:

These measurements are appropriate for room planning, shipping estimates, and consistent catalog presentation for new diagnostic tables.

Accessories:

• Detachable Arm Board (84943) Use with T-rail adapter 5”(13cm) wide x 20.5” (52cm) long
• QuickLock™ Head Rest (black) & AeroCel Pad (PKG7554) Comfortable, adjustable prone or supine support (requires mounting plate)
• Table Extender (63487) 24” (61cm) wide x 12” (30cm) long (requires mounting plate)
• T-rail Adapter 8” (20cm) long  (61902) Attaches to the backrest for use with USA format T-rail attachable accessories.

Why Choose the Oakworks General 2 with Fowler Ultrasound Configuration?

The Oakworks General 2 Table with Fowler Ultrasound setup delivers a dependable balance of patient comfort, clinician ergonomics, and procedural versatility. Its adjustable backrest, stable design, and Oakworks build quality make it an excellent choice for facilities seeking a reliable, multipurpose ultrasound and exam table in a new-condition offering.

Options:

Option

N°

Central Base Locking electric

-

Foot Control

-

Side Rails

For 30"W model table only

 83906

Side Rails

For 26"W model table only

83034

Side Rails

For 30"W model table only

 83906

Configuration 26"W- 3" Comfort Padding

26"W- 3" Comfort Padding

84771

Configuration 30"W- 3" Comfort Padding

30"W- 3" Comfort Padding

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com
