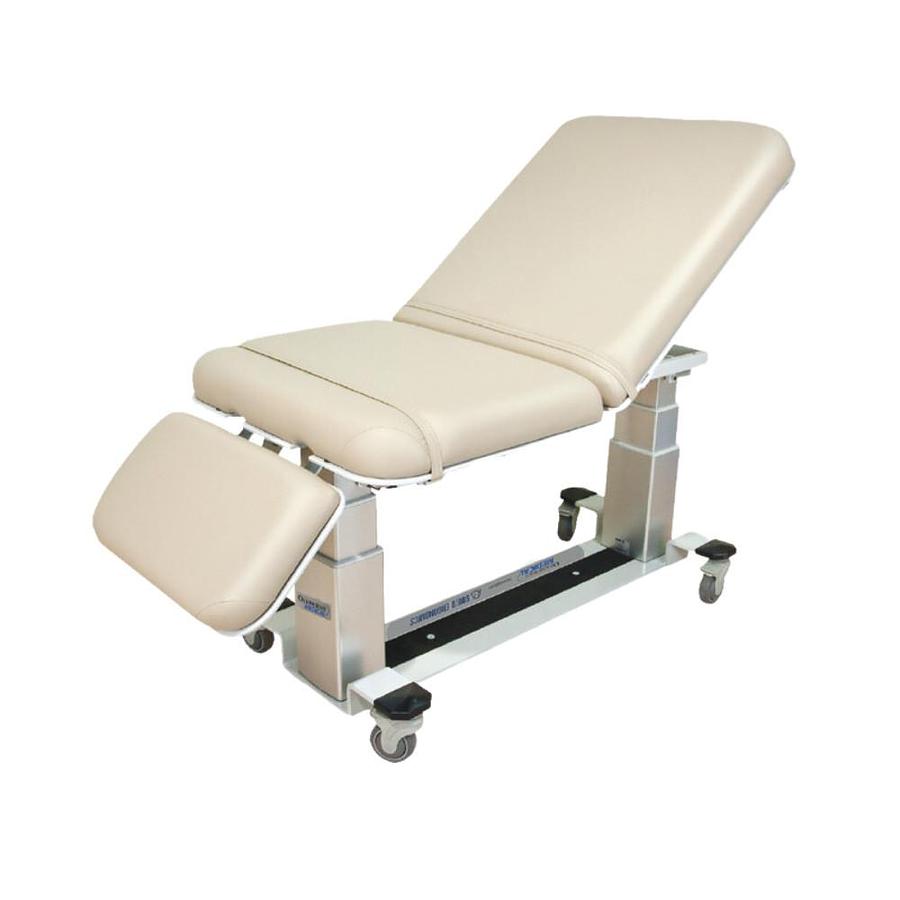

Oakworks General 3 Section Top Ultrasound Table

Oakworks General 3-Section Top Ultrasound Table — New

The Oakworks General 3-Section Top Ultrasound Table is a versatile, medical-grade diagnostic table designed to support ultrasound imaging, general examinations, and a wide range of outpatient diagnostic procedures. Manufactured by Oakworks, this table delivers exceptional flexibility through its three-section articulated design, allowing clinicians to position patients accurately while maintaining comfort and workflow efficiency.

The three-section tabletop enables independent adjustment of the head, center, and leg sections, making this table ideal for abdominal, vascular, OB/GYN, and general ultrasound applications. Built with Oakworks’ renowned structural integrity and premium upholstery, the General 3-Section Top Ultrasound Table is well suited for high-volume clinical environments that require reliability, adaptability, and patient-centered design.

Warranty:

• 3 years parts
• 2 years labor

Features:

• Designed for use as exam chair or table with many options to customize the table to fit your needs
• Designed by leading Ergonomic Specialists and exceeds the “Industry Standards for Sonography”
• Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer
• 3 Section Top - 30 in. (76 cm) or 26 in. (66cm) wide x 72 in. (183 cm) long
• Backrest - 34 in. (86 cm) long
• Seat - 26 in. (66cm) long
• Leg Rest - 11 in. (28cm) long
• Motion 1 - Electric Height Range 19 in. - 33 in. (48-83cm)
• Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
• Motion 3 - Electric Fowler Backrest 0-75°
• Motion 4 - Electric Leg Rest 0-90°
• Controls - Multi-function hand control
• Weight Capacity - 550lb (250kg)
• Product Weight - 359lb (163kg)
• Removable Padding System - 3 in. (8cm) Comfort Foam ™
• Included Features - 4 in. (10cm) locking casters, Paper roll holder

Key Features

• Three-Section Articulated Tabletop
  Independent sections allow flexible patient positioning for a wide range of ultrasound and diagnostic procedures.

• Adjustable Backrest and Leg Section
  Supports upright, semi-reclined, and flat positioning to enhance imaging access and patient comfort.

• Smooth Height Adjustment
  Reliable lift mechanism allows clinicians to adjust working height for ergonomic scanning and safe patient transfer.

• High-Density Comfort Padding
  Medical-grade foam and upholstery provide comfort during extended imaging sessions while remaining easy to clean and disinfect.

• Stable, Low-Profile Base
  Rigid base design minimizes movement during imaging, ensuring consistent image quality and patient safety.

• Accessory Compatibility
  Supports ultrasound positioning aids, bolsters, straps, and other diagnostic accessories commonly used in imaging suites.

Three-Section Articulated Tabletop
Independent sections allow flexible patient positioning for a wide range of ultrasound and diagnostic procedures.

Adjustable Backrest and Leg Section
Supports upright, semi-reclined, and flat positioning to enhance imaging access and patient comfort.

Smooth Height Adjustment
Reliable lift mechanism allows clinicians to adjust working height for ergonomic scanning and safe patient transfer.

High-Density Comfort Padding
Medical-grade foam and upholstery provide comfort during extended imaging sessions while remaining easy to clean and disinfect.

Stable, Low-Profile Base
Rigid base design minimizes movement during imaging, ensuring consistent image quality and patient safety.

Accessory Compatibility
Supports ultrasound positioning aids, bolsters, straps, and other diagnostic accessories commonly used in imaging suites.

Positioning & Motion Capabilities

This configuration allows clinicians to tailor patient positioning precisely without adding mechanical complexity.

Clinical Applications

• Ultrasound imaging (abdominal, vascular, OB/GYN)

• General diagnostic examinations

• Outpatient imaging centers

• Hospital exam and procedure rooms

• Multi-specialty clinics

Ultrasound imaging (abdominal, vascular, OB/GYN)

General diagnostic examinations

Outpatient imaging centers

Hospital exam and procedure rooms

Multi-specialty clinics

Recommended for:

• All abdominal & superficial structures exams
• OB/GYN exams (limited use with endovaginal exams)
• Musculoskeletal exams
• Vascular exams
• Biopsies

Technical Specifications

Backend Entry Fields (for your product form)

Use the following values directly in your backend fields:

These values are appropriate for room planning, shipping estimates, and consistent catalog presentation for new diagnostic and ultrasound tables.

Accessories:

• QuickLock™ Head Rest (black) & AeroCel Pad (PKG7554) Comfortable, adjustable prone or supine support (requires mounting plate)
• Table Extender (63487) 24” (61cm) wide x 12” (30cm) long (requires mounting plate)
• T-rail Adapter 8” (20cm) long  (83139) Attaches to the backrest for use with USA format T-rail attachable accessories.

Why Choose the Oakworks General 3-Section Top Ultrasound Table?

The Oakworks General 3-Section Top Ultrasound Table provides a dependable combination of positional flexibility, patient comfort, and long-term durability. Its articulated tabletop design supports a broad range of imaging workflows while maintaining the simplicity and reliability clinics expect from Oakworks. It is an excellent choice for facilities seeking a new, versatile ultrasound table built for everyday clinical use.

Options:

Option

N°

Central Base Locking electric

-

Foot Control

-

85978

Procedure Tray

-

84754

Side Rails

For 30"W model table only

83906

Side Rails

For 26"W model table only

General 3-Section EA Table

26"W- 3" Comfort Padding

84783

General 3-Section EA Table

30"W- 3" Comfort Padding

83892

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com
